Television Camera Removal

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Park Assist Monitoring. Lexus Gs430, Gs300. Uzs190 Grs190

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

  3. REMOVE LUGGAGE COMPARTMENT DOOR COVER

  4. REMOVE TELEVISION CAMERA ASSEMBLY

Television Camera -- Removal



1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.


2. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP


    Lexus Gs430, Gs300. Uzs190 Grs190.Park Assist Monitoring.Clearance Sonar System.Television Camera Removal

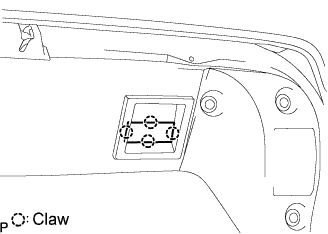

  1. Open the cover, detach the 4 claws and remove the assist grip cover.



    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Remove the 2 screws and assist grip.



3. REMOVE LUGGAGE COMPARTMENT DOOR COVER


    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Using a clip remover, remove the 11 clips and door cover.



4. REMOVE TELEVISION CAMERA ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190.Park Assist Monitoring.Clearance Sonar System.Television Camera Removal

  1. Disconnect the television camera connector.

  1. Detach the television camera connector clamp.

  1. Remove the 2 nuts and television camera.
