Television Camera Installation

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Park Assist Monitoring. Lexus Gs430, Gs300. Uzs190 Grs190

  1. INSTALL TELEVISION CAMERA ASSEMBLY

  2. INSTALL LUGGAGE COMPARTMENT DOOR COVER

  3. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP

  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

  5. ADJUST TELEVISION CAMERA AIMING

  6. PERFORM INITIALIZATION

Television Camera -- Installation



1. INSTALL TELEVISION CAMERA ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190.Park Assist Monitoring.Clearance Sonar System.Television Camera Installation

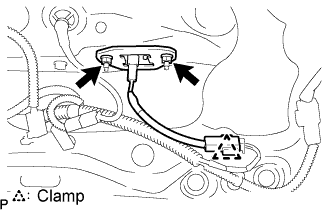

  1. Install the television camera with the 2 nuts.

  1. Attach the television camera connector clamp.

  1. Connect the television camera connector.



2. INSTALL LUGGAGE COMPARTMENT DOOR COVER


    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Install the door cover with the 11 clips.



3. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP


Lexus Gs430, Gs300. Uzs190 Grs190

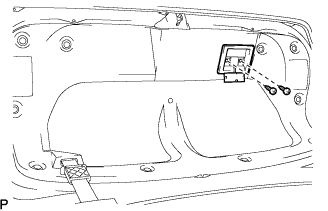

  1. Install the assist grip with the 2 screws.



    Lexus Gs430, Gs300. Uzs190 Grs190.Park Assist Monitoring.Clearance Sonar System.Television Camera Installation

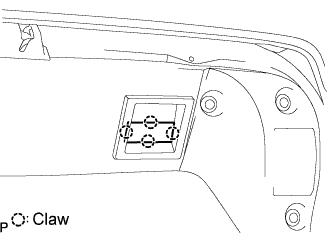

  1. Attach the 4 claws to install the assist grip cover.



4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL


5. ADJUST TELEVISION CAMERA AIMING

  1. Adjust television camera aiming (Click here).



6. PERFORM INITIALIZATION

  1. Perform initialization (Click here).

    NOTICE:
    Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
