Automatic Light Control Sensor On-Vehicle Inspection

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Lighting. Lexus Gs430, Gs300. Uzs190 Grs190

  1. CHECK AUTOMATIC LIGHT CONTROL SENSOR

Automatic Light Control Sensor -- On-Vehicle Inspection



1. CHECK AUTOMATIC LIGHT CONTROL SENSOR


Lexus Gs430, Gs300. Uzs190 Grs190.Lighting.Lighting System.Automatic Light Control Sensor On-Vehicle Inspection

  1. Disconnect the M1 sensor connector.

  1. Connect the voltmeter's positive (+) lead to terminal 6 and the negative (-) lead to terminal 3.

  1. Measure the voltage of the connector.

    Standard voltage:
    Tester Connection
    		Condition
    		Specified Condition
    M1-3 (CTLE) - M1-6 (CTLB)
    		Always
    		10 to 14 V

  1. Measure the resistance of the M1 sensor connector.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    M1-3 (CTLE) - Body ground
    		Always
    		Below 1 Ω

  1. Reconnect the M1 sensor connector.



    Lexus Gs430, Gs300. Uzs190 Grs190.Lighting.Lighting System.Automatic Light Control Sensor On-Vehicle Inspection

  1. Check the waveform of the M1 sensor connector.

    Tester Connection
    		Condition
    		Specified Condition
    		Tester Range
    M1-3 (CTLE) - M1-5 (CTLS)
    		Engine switch on (IG), Headlight dimmer switch in AUTO

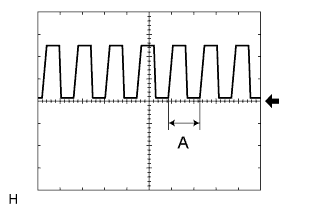

    		Correct waveform is as shown
    		5 V/DIV., 5 msec./DIV.
    HINT:
    If the ambient light becomes brighter, width A becomes narrower.
    If the result is not as specified, replace the automatic light control sensor.
