Can Communication System -- Diagnosis System



BUS CHECK (COMMUNICATION MALFUNCTION DTC)
HINT:
Only CAN communication system DTCs for each ECU can be displayed on the intelligent tester.


    Lexus Gs430, Gs300. Uzs190 Grs190.Can Communication.Can Communication System.Can Communication System Diagnosis System

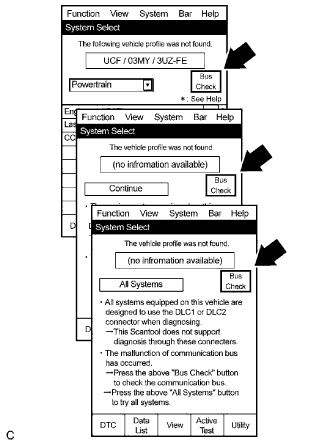

  1. Select "Bus Check" from the "System select" screen on the intelligent tester.



    2. Lexus Gs430, Gs300. Uzs190 Grs190

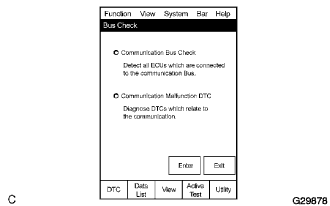

  2. Select "Communication Malfunction DTC" from the "Bus Check" screen, and then select "Enter".



    3. Lexus Gs430, Gs300. Uzs190 Grs190

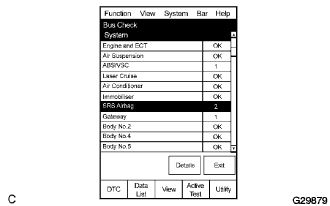

  3. Select the system of the DTC to be checked and select "Details".



    4. Lexus Gs430, Gs300. Uzs190 Grs190

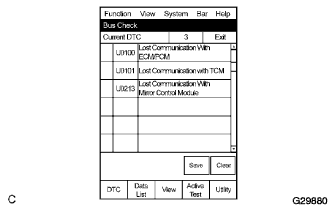

  4. CAN communication system DTC(s) is/are displayed.


BUS CHECK (COMMUNICATION BUS CHECK)
HINT:
The ECUs and sensors that are properly connected to the CAN communication system can be displayed using the intelligent tester.


    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Select "Communication Bus Check" from the "Bus Check" screen.



    2. Lexus Gs430, Gs300. Uzs190 Grs190

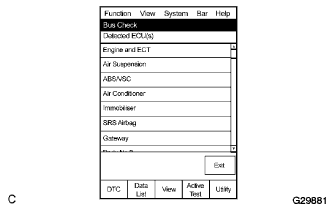

  2. The screen displays the ECUs and sensors that are properly connected to the CAN communication system.

    HINT:
    There is a communication stop in the system of any properly connected ECUs or sensors that are not displayed (Click here).


    3. Lexus Gs430, Gs300. Uzs190 Grs190

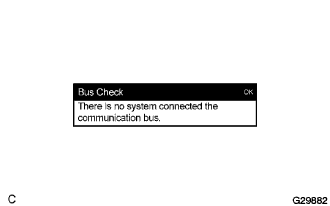

  3. "There is no system connected to the communication bus" is displayed if there are no ECUs or sensors connected to the CAN bus.


CHECK FOR INSTALLED SYSTEMS (ECUS & SENSORS) THAT ADOPT CAN COMMUNICATION

  1. Systems (ECUs, sensors) that adopt CAN communication vary depending on the vehicle's optional settings. Check which systems (ECUs, sensors) are installed on the vehicle.

    ECU/Sensor name
    		Check method
    Skid control ECU with actuator
    		Engine model 3GR-FE or 3GR-FSE
    Skid control ECU
    		Engine model 3UZ-FE
    Steering sensor
    		Installed on all vehicles
    Yaw rate sensor
    		Installed on all vehicles
    ECM
    		Installed on all vehicles
    Distance control ECU
    		Dynamic radar cruise control
    Absorber control ECU
    		Engine model 3UZ-FE
    Network gateway ECU
    		Installed on all vehicles
    Television camera ECU
    		Parking assist monitor system
    Clearance warning ECU
    		LEXUS parking assist-sensor
    Seat belt control ECU
    		Dynamic radar cruise control
    Power steering ECU
    		Installed on all vehicles
    Steering control ECU
    		Engine model 3UZ-FE

DTC TABLE BY ECU
HINT:
  1. In the CAN communication system, CAN communication system DTCs can be displayed by the ECU using the intelligent tester.
  2. If CAN communication system DTCs are output, trouble cannot be determined only by the DTCs. Perform troubleshooting according to "HOW TO PROCEED WITH TROUBLESHOOTING "(Click here). (If, however, U0235 or U1101/U01102 is output alone, see the dynamic radar cruise control system.)

  1. ECM

    HINT:
    1. DTC communication uses the CAN communication system.
    2. Distance control ECU data is also output.

      DTC No.
      		Detection Item
      U0001(*1)
      		High speed CAN Communication Bus
      U0100
      		Lost Communication With ECM/PCM "A"
      U0122
      		Lost Communication With Vehicle Dynamics Control Module
      U0123
      		Lost Communication With Yaw Rate Sensor Module
      U0126
      		Lost Communication With Steering Angle Sensor Module
      U0235(*2)
      		Lost Communication With Cruise Control Front Distance Range Sensor
      U1101(*3)
      		Lost Communication With Distance Control ECU
      U1102(*2)
      		Lost Communication With Distance Control ECU
    1. *1: The ECM is malfunctioning if U0001 is output alone. Replace the ECM.
    2. *2: Displayed on the "communication malfunction DTCs "screen of the intelligent tester. If U0235 or U1102 is output alone, the CAN communication is normal (Click herefor U0235, Click here for U1102).
    3. *3: Dynamic radar cruise DTC.

  2. SKID CONTROL ECU

    HINT:
    DTC communication uses the SIL line.

    DTC No.
    		Detection Item
    U0073
    		Control Module Communication Bus Off
    U0100
    		Lost Communication With ECM/PCM "A"
    U0123
    		Lost Communication With Yaw Rate Sensor Module
    U0124
    		Lost Communication With Lateral Acceleration Sensor Module
    U0126
    		Lost Communication With Steering Angle Sensor Module
    U0130
    		Lost communication With Steering control Module
    U0131
    		Lost communication With Power Steering
    U1101
    		Lost communication With Distance Control Module

  3. ABSORBER CONTROL ECU

    HINT:
    DTC communication uses the SIL line.

    DTC No.
    		Detection Item
    U0100
    		Lost Communication With ECM/PCM "A"
    U0101
    		Lost Communication With ECM
    U0122
    		Lost Communication With Vehicle Dynamics Control Module
    U0124
    		Lost Communication With Lateral Acceleration Sensor Module
    U0126
    		Lost Communication With Steering Angle Sensor Module

  4. POWER STEERING ECU

    DTC No.
    		Detection Item
    U0073
    		Control Module Communication Bus Off
    U0105
    		Lost Communication With ECM/PCM "A"
    U0121
    		Lost Communication With Skid Control ECU
    U0122
    		Lost Communication With Skid Control ECU/ Skid Control ECU with actuator
    U0104
    		Lost Communication With Vehicle Dynamics Control Module
    U0130
    		Lost Communication With Power Steering ECU

  5. SEAT BELT CONTROL ECU

    DTC No.
    		Detection Item
    U0100
    		Lost Communication With ECM/PCM "A"
    U0122
    		Lost Communication With Vehicle Dynamics Control Module
    U0145
    		Lost Communication With Gateway ECU
    U1101
    		Lost Communication With Distance Control ECU

  6. DISTANCE CONTROL ECU

    DTC No.
    		Detection Item
    U0100
    		Lost Communication With ECM/PCM "A"
    U0122
    		Lost Communication With Vehicle Dynamics Control Module
    U0123
    		Lost Communication With Yaw Rate Sensor Module
    U0131
    		Lost Communication With Power Steering ECU
    U0132
    		Lost Communication With Absorber Control ECU
    U0146
    		Lost Communication With Gateway ECU
    U1101
    		Lost Communication With Distance Control ECU

  7. STEERING CONTROL ECU

    DTC No.
    		Detection Item
    U0100
    		Lost Communication With ECM/PCM "A"
    U0122
    		Lost Communication With Vehicle Dynamics Control Module
    U0126
    		Lost Communication With Steering Sensor Module
    U0131
    		Lost Communication With Power Steering ECU

  8. TELEVISION CAMERA ECU

    HINT:
    The television camera ECU is connected to the CAN communication system but CAN communication system DTCs are not output.

  9. NETWORK GATEWAY ECU

    HINT:
    The network gateway ECU is connected to the CAN communication system but CAN communication DTCs are not output.

DTC COMBINATION TABLE

DTC
Trouble Mode
Output from
Output DTC
SKID CONTROL ECU COMMUNICATION STOP MODE
STEERING SENSOR COMMUNICATION STOP MODE
YAW RATE SENSOR COMMUNICATION STOP MODE
GATEWAY ECU COMMUNICATION STOP MODE
ECM COMMUNICATION STOP MODE
DISTANCE CONTROL ECU COMMUNICATION STOP MODE
Skid Control ECU
U0073
X
X
X
X
X
X
U0100
▲
During driving
X
X
X
▲
During driving
X
U0123
○
X
○
X
X
X
U0124
○
X
○
X
X
X
U0126
○
○
X
X
X
X
U0130
X
X
X
X
X
X
U0131
X
X
X
X
X
X
U1101
X
X
X
X
X
○
Absorber Control ECU
U0100
X
X
X
X
○
X
U0101
X
X
X
X
○
X
U0122
○
X
X
X
X
X
U0124
X
X
○
X
X
X
U0126
X
○
X
X
X
X
Seat Belt Control ECU
U0100
X
X
X
X
X
X
U0122
○
X
X
X
X
X
U0146
X
X
X
○
X
X
U1101
X
X
X
X
X
○
ECM
U0100
X
X
X
X
X
X
U0122
▲
Control distance
X
X
X
X
X
U0123
X
X
▲
Control distance
X
X
X
U0126
X
▲
Control distance
X
X
X
X
U1101
X
X
X
X
X
○
U1102
X
X
X
X
○
X
U0235
X
X
X
X
○
X
○: Output
▲: Output under the following condition
X: Not output or may be output according to the malfunctioning part when one side of the CAN bus line opens

DTC
Trouble Mode
Output from
Output DTC
ABSORBER CONTROL ECU COMMUNICATION STOP MODE
TELEVISION CAMERA ECU COMMUNICATION STOP MODE
SEAT BELT CONTROL ECU COMMUNICATION STOP MODE
POWER STEERING ECU COMMUNICATION STOP MODE
STEERING CONTROL ECU COMMUNICATION STOP MODE
Skid Control ECU
U0073
X
X
X
X
X
U0100
X
X
X
X
X
U0123
X
X
X
X
X
U0124
X
X
X
X
X
U0126
X
X
X
X
X
U0130
X
X
X
X
○
U0131
X
X
X
○
X
U1101
X
X
X
X
X
Absorber Control ECU
U0100
○
X
X
X
X
U0101
○
X
X
X
X
U0122
○
X
X
X
X
U0124
○
X
X
X
X
U0126
○
X
X
X
X
Seat Belt Control ECU
U0100
X
X
X
X
X
U0122
X
X
X
X
X
U0145
X
X
X
X
X
U1101
X
X
X
X
X
ECM
U0100
X
X
X
X
X
U0122
X
X
X
X
X
U0123
X
X
X
X
X
U0126
X
X
X
X
X
U1101
X
X
X
X
X
U1102
X
X
X
X
X
U0235
X
X
X
X
X
○: Output
▲: Output under the following condition
X: Not output or may be output according to the malfunctioning part when one side of the CAN bus line opens

DTC
Trouble Mode
Output from
Output DTC
SKID CONTROL ECU COMMUNICATION STOP MODE
STEERING SENSOR COMMUNICATION STOP MODE
YAW RATE SENSOR COMMUNICATION STOP MODE
GATEWAY ECU COMMUNICATION STOP MODE
ECM COMMUNICATION STOP MODE
DISTANCE CONTROL ECU COMMUNICATION STOP MODE
Power Steering ECU
U0073
X
X
X
X
X
X
U0105
X
X
X
X
○
X
U0121
○
X
X
X
X
X
U0122
○
3UZ-FE
X
X
X
X
X
U0104
X
X
X
X
X
○
U0130
X
X
X
X
X
X
Distance Control ECU
U0100
X
X
X
X
▲
X
U0122
▲
X
X
X
X
X
U0123
X
X
▲
X
X
X
U0131
X
X
X
X
X
X
U0132
X
X
X
X
X
X
U0146
X
X
X
X
X
X
U1101
X
X
X
X
X
X
Steering Control ECU
U0100
X
X
X
X
○
X
U0122
○
X
X
X
X
X
U0126
X
○
X
X
X
X
U0131
X
X
X
X
X
X
○: Output
▲: Output under the following condition
X: Not output or may be output according to the malfunctioning part when one side of the CAN bus line opens

DTC
Trouble Mode
Output from
Output DTC
ABSORBER CONTROL ECU COMMUNICATION STOP MODE
TELEVISION CAMERA ECU COMMUNICATION STOP MODE
SEAT BELT CONTROL ECU COMMUNICATION STOP MODE
POWER STEERING ECU COMMUNICATION STOP MODE
STEERING CONTROL ECU COMMUNICATION STOP MODE
Power Steering ECU
U0073
X
X
X
X
X
U0105
X
X
X
X
X
U0121
X
X
X
X
X
U0122
X
X
X
X
X
U0104
X
X
X
X
X
U0130
X
X
X
X
○
Distance Control ECU
U0100
X
X
X
X
X
U0122
X
X
X
X
X
U0123
X
X
X
X
X
U0131
X
X
X
X
X
U0132
X
X
X
X
X
U0146
X
X
X
X
X
U1101
X
X
X
X
X
Steering Control ECU
U0100
X
X
X
X
X
U0122
X
X
X
X
X
U0126
X
X
X
X
X
U0131
X
X
X
○
X
○: Output
▲: Output under the following condition
X: Not output or may be output according to the malfunctioning part when one side of the CAN bus line opens

  1. Perform troubleshooting according to the combination of DTCs output.

    HINT:
    1. ECM COMMUNICATION STOP MODE: Click here
    2. SKID CONTROL ECU COMMUNICATION STOP MODE: Click here
    3. SKID CONTROL ECU WITH ACTUATOR COMMUNICATION STOP MODE: Click here
    4. YAW RATE SENSOR COMMUNICATION STOP MODE: Click here
    5. STEERING SENSOR COMMUNICATION STOP MODE: Click here
    6. DISTANCE CONTROL ECU COMMUNICATION STOP MODE: Click here
    7. TELEVISION CAMERA ECU COMMUNICATION STOP MODE: Click here
    8. SEAT BELT CONTROL ECU COMMUNICATION STOP MODE: Click here
    9. STEERING CONTROL ECU COMMUNICATION STOP MODE: Click here
    10. ABSORBER CONTROL ECU COMMUNICATION STOP MODE: Click here
    11. NETWORK GATEWAY ECU COMMUNICATION STOP MODE: Click here
    12. POWER STEERING ECU COMMUNICATION STOP MODE: Click here
    13. CLEARANCE WARNING ECU COMMUNICATION STOP MODE: Click here
