Front Wiper Rubber Installation

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Wiper And Washer. Lexus Gs430, Gs300. Uzs190 Grs190

  1. INSTALL WIPER RUBBER

  2. INSTALL FRONT WIPER BLADE

Front Wiper Rubber -- Installation


HINT:
  1. Use the same procedures for both the RH and LH sides.
  1. The procedures listed below are for the LH side.


1. INSTALL WIPER RUBBER


Lexus Gs430, Gs300. Uzs190 Grs190.Wiper And Washer.Wiper And Washer System.Front Wiper Rubber Installation

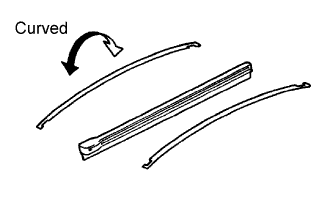

  1. Install the 2 wiper rubber backing plates to the wiper rubber.

    NOTICE:
    Install the backing plates facing the correct direction.


    Lexus Gs430, Gs300. Uzs190 Grs190.Wiper And Washer.Wiper And Washer System.Front Wiper Rubber Installation

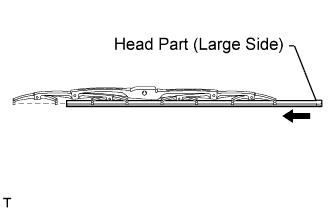

  1. Install the wiper rubber to the claw of the wiper blade in the direction indicated by the arrow in the illustration.

    HINT:
    Install the wiper rubber so that the head part (large side) of the wiper rubber faces the arm axle side.

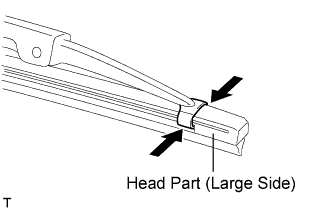

  1. Attach the head part (large side) of the wiper rubber to the rear end side claw of the wiper blade.

    NOTICE:
    Lexus Gs430, Gs300. Uzs190 Grs190.Wiper And Washer.Wiper And Washer System.Front Wiper Rubber Installation
    Push the wiper blade into the grooves of the wiper rubber to attach them completely.


2. INSTALL FRONT WIPER BLADE


    Lexus Gs430, Gs300. Uzs190 Grs190.Wiper And Washer.Wiper And Washer System.Front Wiper Rubber Installation

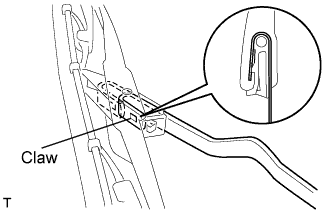

  1. Attach the claw to install the wiper blade.
