Low Pitched Horn Installation

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Horn. Lexus Gs430, Gs300. Uzs190 Grs190

  1. INSTALL LOW PITCHED HORN ASSEMBLY

  2. INSTALL FRONT BUMPER COVER

  3. INSTALL FRONT FENDER LINER LH

  4. INSTALL FRONT FENDER LINER RH

  5. INSTALL ENGINE UNDER COVER

  6. INSTALL COOL AIR INTAKE DUCT SEAL

  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

  8. PERFORM INITIALIZATION

Low Pitched Horn -- Installation



1. INSTALL LOW PITCHED HORN ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190

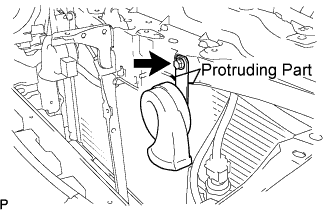

  1. Place the stay onto the baffle part of the radiator support upper, and then install the horn with the bolt.

    Torque:
    20 N*m{205 kgf*cm, 15 ft.*lbf}
    NOTICE:
    Do not overlap the horn and the protruding part of the radiator support.

  1. Connect the connector.



2. INSTALL FRONT BUMPER COVER

  1. Connect the ultrasonic sensor connector.



    Lexus Gs430, Gs300. Uzs190 Grs190.Horn.Low Pitched Horn.Low Pitched Horn Installation

  1. Attach the 3 claws on the LH side.

  1. Attach the 3 claws on the RH side.



    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Install the bumper cover with the 2 clips, 6 screws and 5 bolts.



3. INSTALL FRONT FENDER LINER LH


    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Install the fender liner with the 2 clips.



4. INSTALL FRONT FENDER LINER RH
HINT:
Use the same procedures described for the LH side.


5. INSTALL ENGINE UNDER COVER


Lexus Gs430, Gs300. Uzs190 Grs190

  1. Install the under cover with the 3 clips and 10 screws.



6. INSTALL COOL AIR INTAKE DUCT SEAL


Lexus Gs430, Gs300. Uzs190 Grs190

  1. Install the duct seal with the 7 clips.



7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL


8. PERFORM INITIALIZATION

  1. Perform initialization (Click here).

    NOTICE:
    Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
