Cigarette Lighter Assembly Removal

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Other System. Lexus Gs430, Gs300. Uzs190 Grs190

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE FRONT CONSOLE UPPER PANEL GARNISH

  3. REMOVE CONSOLE UPPER PANEL ASSEMBLY

  4. REMOVE CIGARETTE LIGHTER ASSEMBLY

Cigarette Lighter Assembly -- Removal



1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.


2. REMOVE FRONT CONSOLE UPPER PANEL GARNISH


Lexus Gs430, Gs300. Uzs190 Grs190

  1. Using a clip remover, detach the claws and remove the garnish.

    HINT:
    Tape the clip remover tip before use.


3. REMOVE CONSOLE UPPER PANEL ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190

  1. Twist the shift lever knob in the direction indicated by the arrow and remove it.



    Lexus Gs430, Gs300. Uzs190 Grs190.Other System.Cigarette Lighter Assembly.Cigarette Lighter Assembly Removal

  1. Using a screwdriver, detach the 9 clips.

    HINT:
    Tape the screwdriver tip before use.

  1. Remove the ash receptacle and then disconnect the connector.



4. REMOVE CIGARETTE LIGHTER ASSEMBLY


    Lexus Gs430, Gs300. Uzs190 Grs190

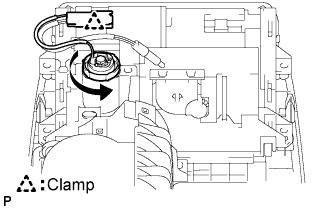

  1. Rotate the socket body in the direction indicated by the arrow mark, and remove the socket body from the cigarette lighter.



    Lexus Gs430, Gs300. Uzs190 Grs190.Other System.Cigarette Lighter Assembly.Cigarette Lighter Assembly Removal

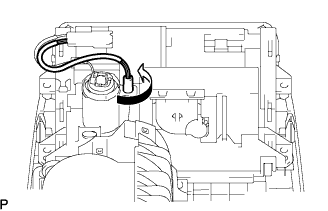

  1. Rotate the ring nut in the direction indicated by the arrow mark, and remove the cigarette lighter from the console panel.
