Clearance Warning Buzzer -- Installation |

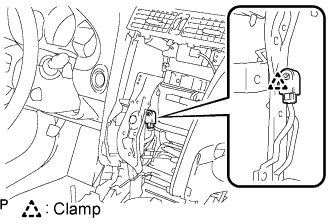

| 1. INSTALL NO. 1 CLEARANCE WARNING BUZZER |
 |
Attach the clamp to install the clearance warning buzzer.
Connect the connector.
| 2. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY |
Connect the connectors.
Insert the multi-display with radio receiver and attach the 2 clips on its backside.
 |
Install the multi-display with radio receiver with the 4 bolts.
 |
| 3. INSTALL INSTRUMENT PANEL FINISH PANEL END LH |
 |
Attach the 4 clips and 3 claws to install the finish panel end.
Install the screw.
| 4. INSTALL INSTRUMENT PANEL FINISH PANEL END RH |
 |
Attach the 3 clips and 3 claws to install the finish panel end.
Install the screw.
| 5. INSTALL CONSOLE UPPER PANEL ASSEMBLY |
 |
Connect the connector.
Attach the 9 clips to install the ash receptacle.
Install the shift lever knob and twist it in the direction indicated by the arrow.
 |
| 6. INSTALL FRONT CONSOLE UPPER PANEL GARNISH |
Attach the claws to install the garnish.
| 7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL |
| 8. PERFORM INITIALIZATION |
Perform initialization (Click here).
- NOTICE:
- Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
