Washer Nozzle Adjustment

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Wiper And Washer. Lexus Gs430, Gs300. Uzs190 Grs190

  1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

Washer Nozzle -- Adjustment



1. REMOVE WASHER NOZZLE SUB-ASSEMBLY


    Lexus Gs430, Gs300. Uzs190 Grs190.Wiper And Washer.Wiper And Washer System.Washer Nozzle Adjustment

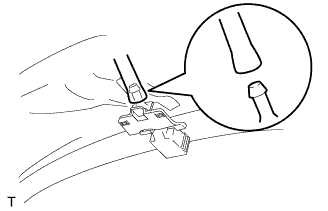

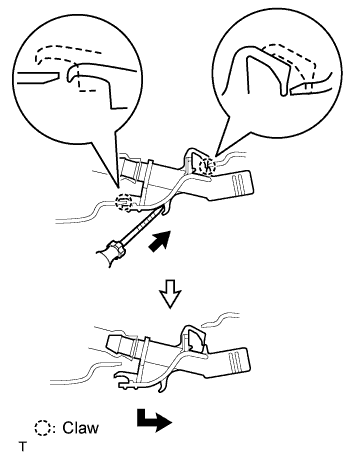

  1. Using a screwdriver, detach the 2 claws and separate the washer nozzle.

    HINT:
    Tape the screwdriver tip before use.
    NOTICE:
    Be careful not to damage the windshield.


    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Remove the washer nozzle from the washer hose.

    NOTICE:
    Washer nozzles cannot be reused.

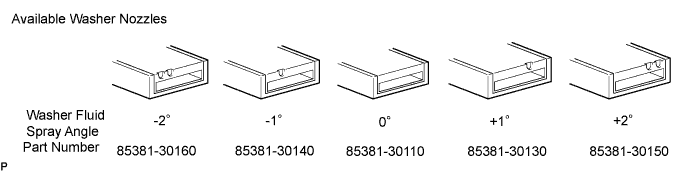

  1. Select a washer nozzle so that the contact area is within the standard. Replace the washer nozzle with the selected one.


    Lexus Gs430, Gs300. Uzs190 Grs190.Wiper And Washer.Wiper And Washer System.Washer Nozzle Adjustment
