Microphone Amplifier Installation

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Audio Visual. Lexus Gs430, Gs300. Uzs190 Grs190

  1. INSTALL MICROPHONE AMPLIFIER ASSEMBLY

  2. INSTALL PERSONAL LIGHT ASSEMBLY

  3. INSTALL FRONT ROOFTOP GARNISH

  4. INSTALL INNER REAR VIEW MIRROR COVER

  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

  6. PERFORM INITIALIZATION

Microphone Amplifier -- Installation



1. INSTALL MICROPHONE AMPLIFIER ASSEMBLY

  1. Install the microphone amplifier to the map light.



    Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Microphone Amplifier Installation

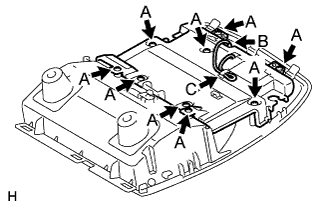

  1. Install the cover to the map light with the 9 screws labeled A.

  1. Connect the connector labeled B.

  1. Install the microphone amplifier cord to the cover labeled C.



2. INSTALL PERSONAL LIGHT ASSEMBLY

  1. Connect the connector.

  1. Attach the 3 claws and 2 clips, and install the personal light.

  1. Install the 2 screws and 2 covers to the personal light.



3. INSTALL FRONT ROOFTOP GARNISH

  1. Attach the 3 claws and 2 clips, and install the top garnish.



4. INSTALL INNER REAR VIEW MIRROR COVER


5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL


6. PERFORM INITIALIZATION

  1. Perform initialization (Click here).

    NOTICE:
    Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
