Window Glass Antenna Wire Repair

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Audio Visual. Lexus Gs430, Gs300. Uzs190 Grs190

  1. CHECK WINDOW GLASS ANTENNA WIRE

  2. REPAIR WINDOW GLASS ANTENNA WIRE

Window Glass Antenna Wire -- Repair



1. CHECK WINDOW GLASS ANTENNA WIRE


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Window Glass Antenna Wire Repair
NOTICE:
  1. When cleaning the glass, use a soft, dry cloth, and wipe the glass in the direction of the wire. Take care not to damage the wires. Do not use detergents or glass cleaners with abrasive ingredients.

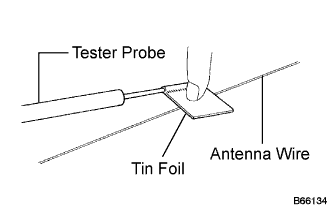

  2. When measuring voltage, wind a piece of tin foil around the top of the negative probe and press the foil against the wire with your finger, as shown in the illustration.


    Lexus Gs430, Gs300. Uzs190 Grs190

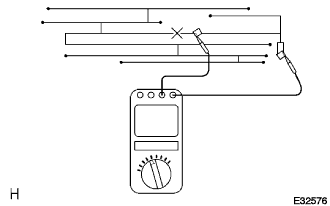

  1. Check the voltage at the center of each wire, as shown in the illustration.



2. REPAIR WINDOW GLASS ANTENNA WIRE


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Window Glass Antenna Wire Repair

  1. Clean the broken wire tips with grease, wax and silicone remover.

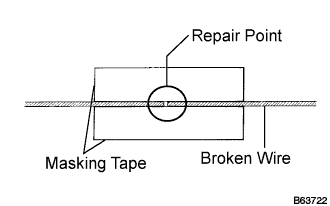

  1. Place masking tape along both sides of the wire to be repaired.

  1. Thoroughly mix the repair agent (Dupont paste No. 4817).



    Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Window Glass Antenna Wire Repair

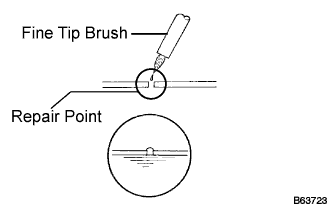

  1. Using a fine tip brush, apply a small amount of the repair agent to the wire.

  1. After a few minutes, remove the masking tape.

  1. Do not repair the antenna wire for at least 24 hours.
