  1. INSPECT STEERING PAD SWITCH CABLE SUB-ASSEMBLY

Steering Pad Switch Cable -- Inspection



1. INSPECT STEERING PAD SWITCH CABLE SUB-ASSEMBLY



Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Steering Pad Switch Cable Inspection

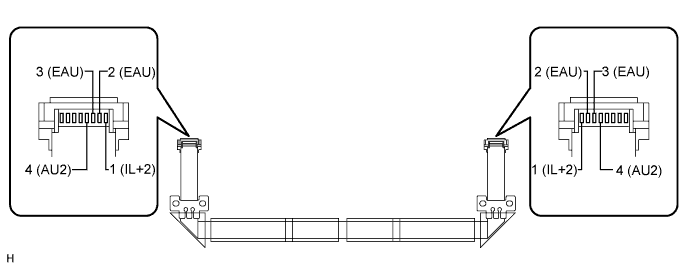

  1. Measure the resistance of the cable assembly.

    Standard resistance:
    Tester Connection
    		Specified Condition
    1 (ILL+2) - 1 (ILL+2)
    		Below 1 Ω
    4 (AU2) - 4 (AU2)
    		Below 1 Ω
    2 (EAU) - 2 (EAU)
    		Below 1 Ω
    3 (EAU) - 3 (EAU)
    		Below 1 Ω
    If the result is not as specified, replace the cable.
