Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Audio Visual. Lexus Gs430, Gs300. Uzs190 Grs190
Stereo Component Amplifier -- Removal |
| 1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |
- CAUTION:
- Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
| 2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT |
| 3. REMOVE LUGGAGE COMPARTMENT COVER RH |

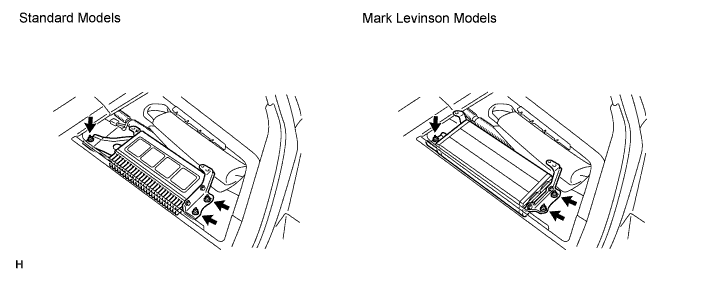

| 4. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH AMPLIFIER BRACKET |
Disconnect the connectors.
Remove the 3 nuts and amplifier with bracket.

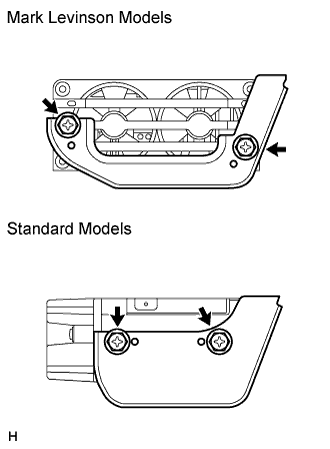

| 5. REMOVE NO. 2 AMPLIFIER BRACKET |
Remove the 2 screws and bracket.
 |

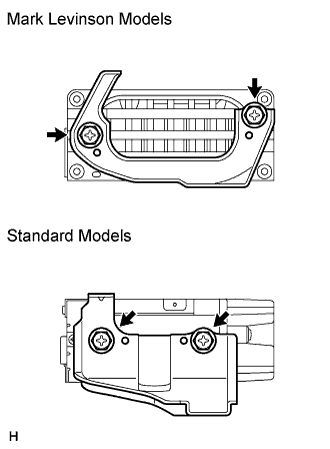

| 6. REMOVE NO. 1 AMPLIFIER BRACKET |
Remove the 2 screws and bracket.
 |
| 7. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY |
