Radio Antenna Cord Removal

Remove all discs and tapes.

NOTICE:

If the discs or tapes cannot be removed, do not attempt to remove them forcibly. Send the unit to a repair shop.

Turn the engine switch off.

While simultaneously pressing the "SEEK UP" and "DISC" switches, turn the engine switch on (ACC).

HINT:

The CD loading door indicator light blinks during mode setting and it remains lit after the setting is completed.

Turn the engine switch off.

Using a clip remover, detach the claws and remove the garnish.

HINT:

Tape the clip remover tip before use.

Twist the shift lever knob in the direction indicated by the arrow and remove it.

Using a screwdriver, detach the 9 clips.

HINT:

Tape the screwdriver tip before use.

Remove the ash receptacle and then disconnect the connector.

Remove the screw.

Using a screwdriver, detach the 4 clips and 3 claws.

HINT:

Tape the screwdriver tip before use.

Remove the finish panel end.

Remove the screw.

Using a screwdriver, detach the 3 clips and 3 claws.

HINT:

Tape the screwdriver tip before use.

Remove the finish panel end.

Using a screwdriver, detach the 4 clips.

HINT:

Tape the screwdriver tip before use.

Remove the console box plate and then disconnect the connector.

Using a screwdriver, detach the 4 clips and remove the register.

HINT:

Tape the screwdriver tip before use.

Remove the 4 bolts and 2 screws.

Remove the console box and then disconnect the connector.

Remove the 4 bolts.

Pull the multi-display with radio receiver to detach the 2 clips on the backside of the multi-display.

Disconnect the connectors and remove the multi-display with radio receiver.

Look at the backside of the radio receiver and check that a metal plate can be seen through the hole near the "SHIP" mark.

NOTICE:

If a metal plate cannot be seen, perform the shipment mode setting again.

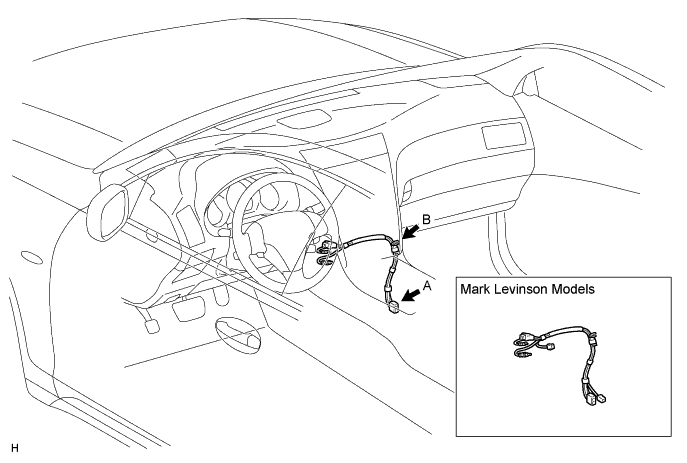

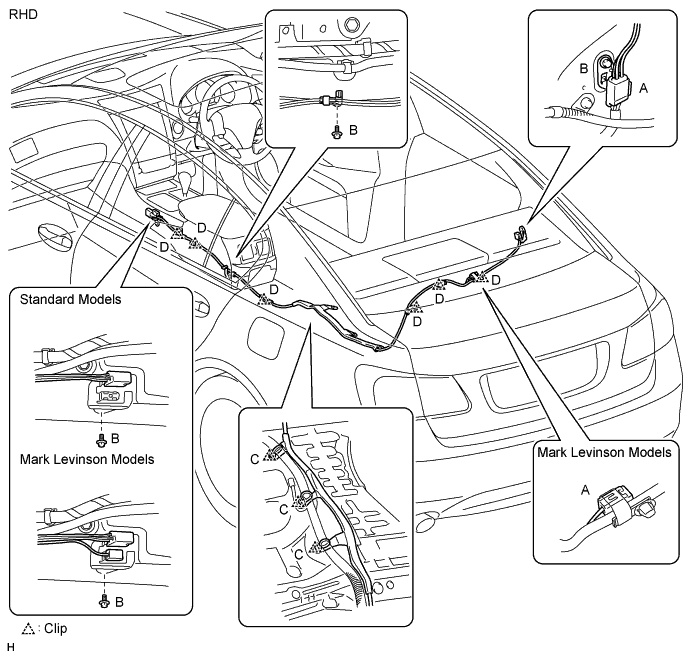

Disconnect the connector labeled A.

Detach the clip labeled B and remove the antenna cord.

Detach the seat cushion's 2 front hooks from the vehicle body.

NOTICE:

Follow the instructions below carefully as the cushion frame deforms easily.

1. Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.


2. Repeat for the other hook.


Detach the seat cushion's 2 rear hooks from the seatback.

Remove the seat cushion.

Using a screwdriver, detach the claws and remove the 2 rear seat covers.

HINT:

Tape the screwdriver tip before use.

Using a screwdriver, detach the claw to open the cap of the 3 rear seat shoulder belt guides.

Remove the bolt and floor anchor part.

Remove the 4 bolts and 2 nuts.

Remove the seatback.

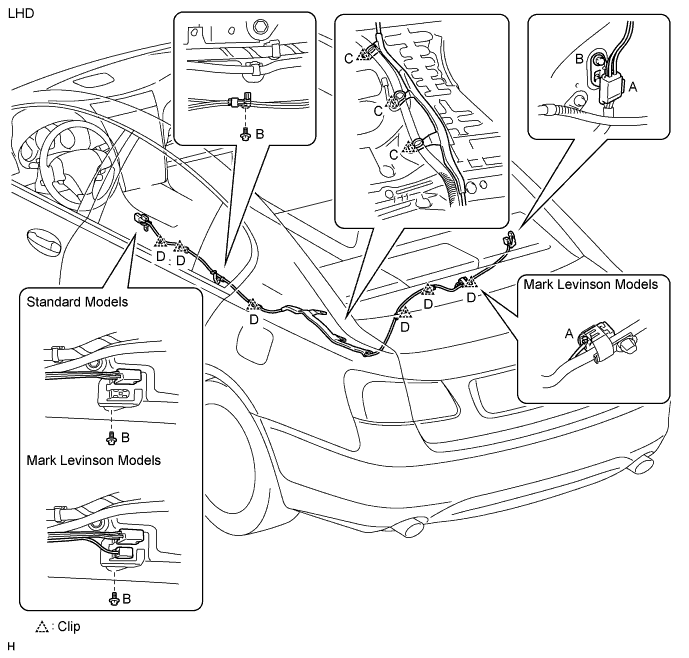

Disconnect the connectors labeled A.

Remove the 3 bolts labeled B.

Detach the antenna cord protector's 3 clips labeled C from the floor stud bolts.

Detach the 6 clips labeled D and remove the antenna cord.
