Amplifier Antenna Installation

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Audio Visual. Lexus Gs430, Gs300. Uzs190 Grs190

  1. INSTALL AMPLIFIER ANTENNA ASSEMBLY

  2. INSTALL ROOF HEADLINING ASSEMBLY

  3. INSTALL VISOR HOLDER

  4. INSTALL LH VISOR ASSEMBLY

  5. INSTALL RH VISOR ASSEMBLY

  6. INSTALL VISOR BRACKET COVER

  7. INSTALL STEERING SPOT LIGHT ASSEMBLY

  8. INSTALL ASSIST GRIP ASSEMBLY

  9. INSTALL REAR ROOM LIGHT ASSEMBLY

  10. INSTALL INNER REAR VIEW MIRROR ASSEMBLY

  11. INSTALL PERSONAL LIGHT ASSEMBLY

  12. INSTALL FRONT ROOFTOP GARNISH

  13. INSTALL INNER REAR VIEW MIRROR COVER

  14. INSTALL ROOF SIDE GARNISH INNER LH

  15. INSTALL ROOF SIDE GARNISH INNER RH

  16. INSTALL REAR SEAT SIDE GARNISH LH

  17. INSTALL REAR SEAT SIDE GARNISH RH

  18. INSTALL CENTER PILLAR GARNISH LH

  19. INSTALL CENTER PILLAR GARNISH RH

  20. INSTALL CENTER PILLAR GARNISH LOWER LH

  21. INSTALL CENTER PILLAR GARNISH LOWER RH

  22. INSTALL REAR DOOR SCUFF PLATE LH

  23. INSTALL REAR DOOR SCUFF PLATE RH

  24. INSTALL FRONT PILLAR GARNISH LH

  25. INSTALL FRONT PILLAR GARNISH RH

  26. INSTALL FRONT DOOR OPENING TRIM COVER LH

  27. INSTALL FRONT DOOR OPENING TRIM COVER RH

  28. INSTALL FRONT DOOR SCUFF PLATE LH

  29. INSTALL FRONT DOOR SCUFF PLATE RH

  30. INSTALL CONSOLE BOX

  31. INSTALL CONSOLE BOX REGISTER ASSEMBLY

  32. INSTALL CONSOLE BOX PLATE

  33. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

  34. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

  35. INSTALL CONSOLE UPPER PANEL ASSEMBLY

  36. INSTALL FRONT CONSOLE UPPER PANEL GARNISH

  37. INSTALL REAR SEATBACK ASSEMBLY

  38. INSTALL REAR SEAT HEADREST ASSEMBLY CENTER

  39. INSTALL REAR SEAT HEADREST ASSEMBLY LH AND RH

  40. INSTALL REAR SEAT CUSHION ASSEMBLY

  41. INSTALL FRONT SEAT ASSEMBLY

  42. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

  43. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

  44. PERFORM INITIALIZATION

  45. INSPECT FRONT POWER SEAT CONTROL SYSTEM

  46. INSPECT SEAT HEATER CONTROL

  47. INSPECT CLIMATE CONTROL SEAT SYSTEM

  48. INSPECT SEAT BELT WARNING SYSTEM

Amplifier Antenna -- Installation



1. INSTALL AMPLIFIER ANTENNA ASSEMBLY


  1. Use white gasoline to clean the area on the glass where the antenna will be installed.

    NOTICE:
    Do not use white gasoline to clean the antenna's contact points. Doing so may cause improper contact between the antenna and glass.


    Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation

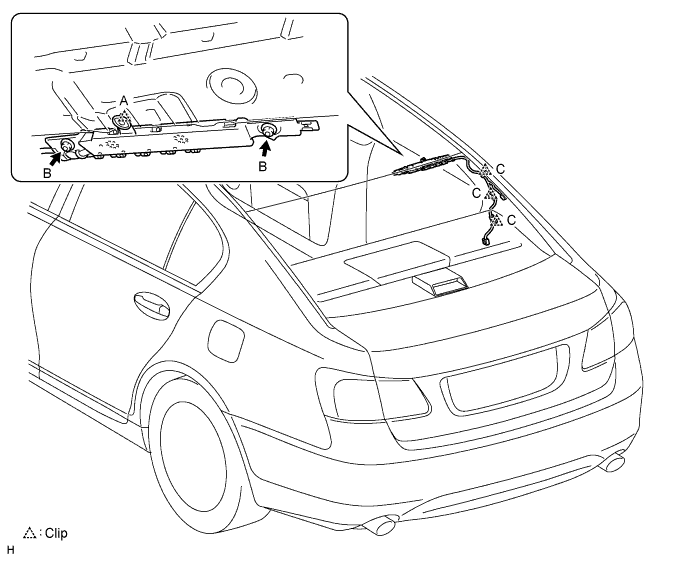

  1. Temporarily install the antenna with the clip labeled A, and then install the antenna with the 2 nuts labeled B.

    Torque:
    14 N*m{143 kgf*cm, 10 ft.*lbf}
    NOTICE:
    1. Just before installing the antenna to the glass, remove the protective cover of the antenna's contact points.
    1. When removing the protective cover of the antenna's contact points, make sure the cover does not touch the contact points.
    1. Never touch the contact points after removing the protective cover.
    1. After removing the protective cover, return it to the manufacturer for recycling.
    1. Do not reuse the clip labeled A.
  1. Attach the 3 clips labeled C.

  1. Connect the connectors.



2. INSTALL ROOF HEADLINING ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation

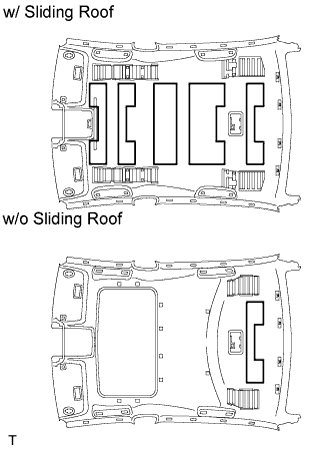

  1. Apply double-sided tape to the pads.

  1. Align the pads with the markings on the roof headlining, and then install the pads.



    Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation

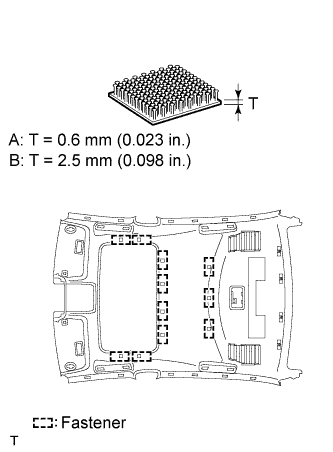

  1. Only when replacing the sliding roof housing:

    1. Remove the 11 fasteners from the removed sliding roof housing, and attach them to the roof headlining.

  1. Place the roof headlining in the vehicle through the rear door.

  1. w/o Sliding roof:
    Attach the 2 hooks and 4 clips to the vehicle body.

  1. w/ Sliding roof:
    Attach the hook, claw and 4 clips to the vehicle body.

  1. Only when replacing the roof headlining:
    Remove the 11 fasteners from the removed roof headlining, and attach them to the new roof headlining.

  1. Attach the clips on the rear side of the vehicle.

  1. w/ Sliding roof:
    Install the roof headlining to the sliding roof housing.

  1. Attach the clamp of the roof wire to the front pillar garnish LH. Then connect the connector.



  1. w/ Sliding roof:

    1. Connect the connector to the sliding roof drive gear.


    Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation



3. INSTALL VISOR HOLDER


4. INSTALL LH VISOR ASSEMBLY
  1. Install the visor with the 2 screws.



5. INSTALL RH VISOR ASSEMBLY
  1. Install the visor with the 2 screws.



6. INSTALL VISOR BRACKET COVER
  1. Attach the 4 claws to install the cover.



7. INSTALL STEERING SPOT LIGHT ASSEMBLY
  1. Connect the connector.

  1. Attach the 2 claws to install the spot light.



8. INSTALL ASSIST GRIP ASSEMBLY


9. INSTALL REAR ROOM LIGHT ASSEMBLY
  1. Connect the connector.

  1. Attach the 4 claws to install the room light to the vehicle body.



10. INSTALL INNER REAR VIEW MIRROR ASSEMBLY


    Lexus Gs430, Gs300. Uzs190 Grs190
  1. Connect the connector.



    Lexus Gs430, Gs300. Uzs190 Grs190
  1. Install the mirror with the screw.



11. INSTALL PERSONAL LIGHT ASSEMBLY
  1. Connect the connector.

  1. Attach the 3 claws and 2 clips, and install the personal light.

  1. Install the 2 screws and 2 covers to the personal light.



12. INSTALL FRONT ROOFTOP GARNISH
  1. Attach the 3 claws and 2 clips, and install the top garnish.



13. INSTALL INNER REAR VIEW MIRROR COVER


14. INSTALL ROOF SIDE GARNISH INNER LH
  1. Attach the 2 claws and 4 clips, and install the garnish.



15. INSTALL ROOF SIDE GARNISH INNER RH
HINT:
Use the same procedures described for the LH side.


16. INSTALL REAR SEAT SIDE GARNISH LH


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation
  1. Attach the 5 claws and install the garnish.

  1. Pull out the folded lip of the weatherstrip.



17. INSTALL REAR SEAT SIDE GARNISH RH
HINT:
Use the same procedures described for the LH side.


18. INSTALL CENTER PILLAR GARNISH LH
  1. Attach the 2 claws to install the garnish.

  1. Install the 2 screws.

  1. Pull out the folded lip of the weatherstrip.



19. INSTALL CENTER PILLAR GARNISH RH
HINT:
Use the same procedures described for the LH side.


20. INSTALL CENTER PILLAR GARNISH LOWER LH
  1. Attach the 2 claws and 5 clips to install the garnish.

  1. Pull out the folded lip of the weatherstrip.



21. INSTALL CENTER PILLAR GARNISH LOWER RH
HINT:
Use the same procedures described for the LH side.


22. INSTALL REAR DOOR SCUFF PLATE LH


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation
  1. Attach the 5 claws to install the scuff plate.

  1. Pull out the folded lip of the weatherstrip.



23. INSTALL REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedures described for the LH side.


24. INSTALL FRONT PILLAR GARNISH LH


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation
  1. Attach a new clip A to the vehicle body.

  1. Set the pillar garnish to the area labeled B. Using needle-nose pliers, install clip A to the pillar garnish and rotate it 90°.

  1. Install the pillar garnish by attaching the claws and clip.

  1. Pull out the folded lip of the weatherstrip.



25. INSTALL FRONT PILLAR GARNISH RH
HINT:
Use the same procedures described for the LH side.


26. INSTALL FRONT DOOR OPENING TRIM COVER LH
  1. Attach the 3 claws to install the trim cover.

  1. Pull out the folded lip of the weatherstrip.



27. INSTALL FRONT DOOR OPENING TRIM COVER RH
HINT:
Use the same procedures described for the LH side.


28. INSTALL FRONT DOOR SCUFF PLATE LH


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation
  1. Attach the 5 claws to install the scuff plate.

  1. Pull out the folded lip of the weatherstrip.



29. INSTALL FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedures described for the LH side.


30. INSTALL CONSOLE BOX


Lexus Gs430, Gs300. Uzs190 Grs190
  1. Connect the connector.

  1. Install the console box with the 4 bolts and 2 screws.



31. INSTALL CONSOLE BOX REGISTER ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation
  1. Attach the 4 clips to install the register.



32. INSTALL CONSOLE BOX PLATE


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation
  1. Connect the connector.

  1. Attach the 4 clips to install the console box.



33. INSTALL INSTRUMENT PANEL FINISH PANEL END LH


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation
  1. Attach the 4 clips and 3 claws to install the finish panel end.

  1. Install the screw.



34. INSTALL INSTRUMENT PANEL FINISH PANEL END RH


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation
  1. Attach the 3 clips and 3 claws to install the finish panel end.

  1. Install the screw.



35. INSTALL CONSOLE UPPER PANEL ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation
  1. Connect the connector.

  1. Attach the 9 clips to install the ash receptacle.



    Lexus Gs430, Gs300. Uzs190 Grs190
  1. Install the shift lever knob and twist it in the direction indicated by the arrow.



36. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
  1. Attach the claws to install the garnish.



37. INSTALL REAR SEATBACK ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190
  1. Place the seatback in the cabin.

    NOTICE:
    Be careful not to damage the vehicle body.
  1. Install the seatback with the 4 bolts and 2 nuts.

    Torque:
    18.1 N*m{185 kgf*cm, 13 ft.*lbf}
  1. Install the 2 rear seat covers.

  1. Pass the 3 seat belts through and close the cap of the 3 rear seat shoulder belt guides.

  1. Install the floor anchor part with the bolt.



38. INSTALL REAR SEAT HEADREST ASSEMBLY CENTER


39. INSTALL REAR SEAT HEADREST ASSEMBLY LH AND RH


40. INSTALL REAR SEAT CUSHION ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation
  1. Attach the seat cushion's 2 rear hooks to the seatback.

  1. Attach the seat cushion's 2 front hooks to the vehicle body.

  1. Confirm that the seat cushion is firmly installed.

    NOTICE:
    When installing the seat cushion, make sure the seat belt buckle is not under the seat cushion.


41. INSTALL FRONT SEAT ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Amplifier Antenna  Installation
  1. Place the seat in the cabin.

  1. Connect the connectors under the seat.

  1. Connect the cable to the negative (-) battery terminal.

  1. Operate the power seat switch knob and move the seat to the foremost position.

  1. Tighten the 2 bolts on the rear side of the seat.

    Torque:
    36.8 N*m{375 kgf*cm, 27 ft.*lbf}
    HINT:
    Tighten the 2 bolts in the order indicated in the illustration.
  1. Operate the power seat switch knob and move the seat to the rearmost position.

  1. Tighten the 2 bolts on the rear side of the seat.

    Torque:
    36.8 N*m{375 kgf*cm, 27 ft.*lbf}
    HINT:
    Tighten the 2 bolts in the order indicated in the illustration.


42. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH


Lexus Gs430, Gs300. Uzs190 Grs190
  1. Move the seat using the power seat switch knob so that the seat belt anchor bolt is revealed.

  1. Install the front seat outer belt anchor with the bolt.

    Torque:
    42 N*m{428 kgf*cm, 31 ft.*lbf}
  1. Install the seat belt anchor cover cap.

  1. Install the front seat belt hole cover.



43. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL


44. PERFORM INITIALIZATION
  1. Perform initialization (Click here).

    NOTICE:
    Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.


45. INSPECT FRONT POWER SEAT CONTROL SYSTEM
  1. Inspect the front power seat control system (Click here).

  1. Inspect the front power seat control system (w/ seat position memory system) (Click here).



46. INSPECT SEAT HEATER CONTROL
  1. Inspect the seat heater control (Click here).



47. INSPECT CLIMATE CONTROL SEAT SYSTEM
  1. Inspect the climate control seat system (Click here).



48. INSPECT SEAT BELT WARNING SYSTEM
  1. Inspect the seat belt warning system (Click here).
