Front Stereo Component Speaker Installation

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Audio Visual. Lexus Gs430, Gs300. Uzs190 Grs190

  1. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY

  2. INSTALL SPEAKER HOLE COVER

  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

  4. PERFORM INITIALIZATION

Front Stereo Component Speaker -- Installation


HINT:
A bolt without a torque specification is shown in the standard bolt chart (Click here).


1. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY

  1. Connect the connector.



    Lexus Gs430, Gs300. Uzs190 Grs190

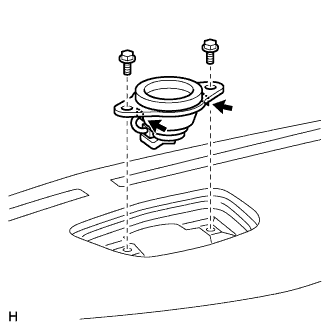

  1. Temporarily install the speaker by aligning the positioning pins of the speaker to the instrument panel.

  1. Install the speaker with the 2 bolts.

    HINT:
    Do not touch the cone part of the speaker.


2. INSTALL SPEAKER HOLE COVER


    Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Front Stereo Component Speaker Installation

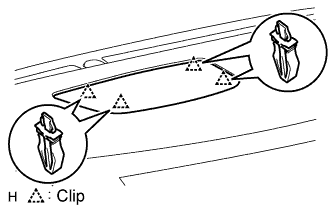

  1. Attach the 4 clips to install the hole cover.



3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL


4. PERFORM INITIALIZATION

  1. Perform initialization (Click here).

    NOTICE:
    Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
