Rear Speaker Removal

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Audio Visual. Lexus Gs430, Gs300. Uzs190 Grs190

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH

  3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

  4. REMOVE REAR SPEAKER ASSEMBLY

Rear Speaker -- Removal


HINT:
  1. Use the same procedures for the LH side and RH side.
  1. The procedures listed below are for the LH side.


1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.


2. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Rear Speaker Removal

  1. Using a screwdriver, detach the 3 claws and remove the bezel plug.

    HINT:
    Tape the screwdriver tip before use.


3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH


Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Rear Speaker Removal

  1. Detach the 2 claws and trim lower cover.



    Lexus Gs430, Gs300. Uzs190 Grs190.Audio Visual.Audio And Visual System.Rear Speaker Removal

  1. Remove the 2 screws.

  1. Detach the 6 clips labeled B, and remove the trim together with the weatherstrip.

  1. Detach the 4 clips labeled A to separate the weatherstrip.



    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Disconnect the 2 cables from the inside handle.

  1. Disconnect the connectors and remove the trim board.



4. REMOVE REAR SPEAKER ASSEMBLY


    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Disconnect the connector.

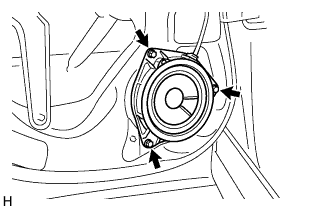

  1. Remove the 3 screws and speaker.

    HINT:
    Do not touch the cone part of the speaker.
