Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Audio Visual. Lexus Gs430, Gs300. Uzs190 Grs190
Front No. 1 Speaker -- Installation |
- HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
| 1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY |
 |

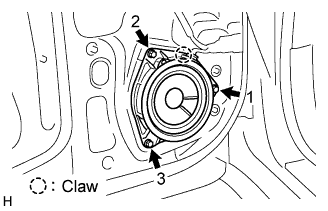

Temporarily install the speaker by attaching the claws of the speaker to the door panel.
Install the speaker with the 3 screws.
- HINT:
- Install the screws in the order shown in the illustration.
- Do not touch the cone part of the speaker.
Connect the connector.
| 2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH |
 |
Connect the 2 cables to the inside handle as shown in the illustration.

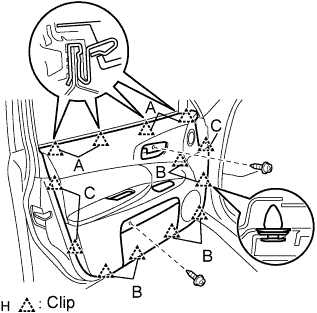

Install the weatherstrip to the trim by attaching the 4 clips labeled A.
 |
Attach the 6 clips labeled B and 3 new clips labeled C to install the trim together with the weatherstrip.
Install the 2 screws.
Connect the connector.
 |
Attach the 2 claws to install the trim lower cover.
| 3. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH |
 |

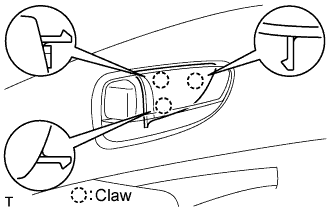

Attach the 3 claws to install the bezel plug.
| 4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL |
| 5. PERFORM INITIALIZATION |
Perform initialization (Click here).
- NOTICE:
- Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
