PARKING ASSIST MONITOR SYSTEM - AVC-LAN Circuit between Multi-display and Television Camera ECU |
DESCRIPTION
Each unit of the rear view monitor system connected with the AVC-LAN (communication) transfers signal of each switch.When a short to +B or short to ground occurs in the AVC-LAN, this system will not function normally as communication is discontinued.

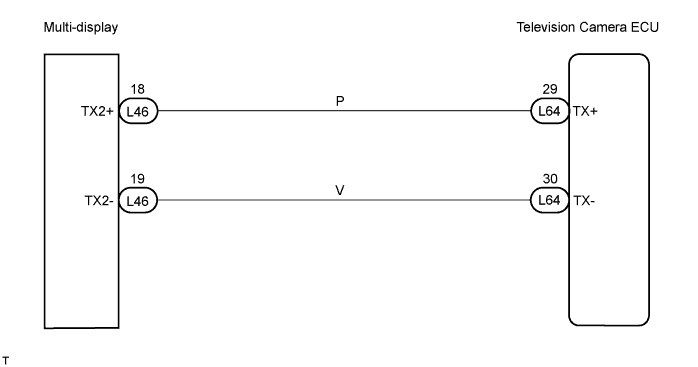

WIRING DIAGRAM
INSPECTION PROCEDURE

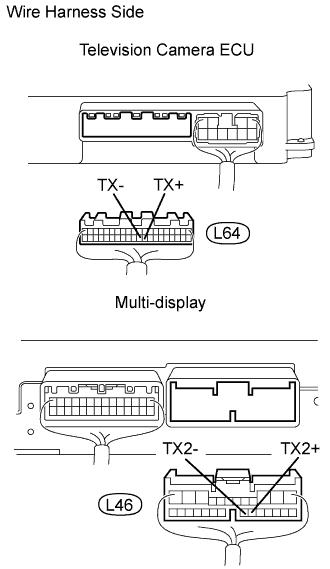

| 1.CHECK WIRE HARNESS (TELEVISION CAMERA ECU - MULTI-DISPLAY) |
Disconnect the L64 ECU connector.
Disconnect the L46 multi-display connector.
Measure the resistance of the wire harness connectors.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
L64-29 (TX+) - L46-18 (TX2+)
| Always
| Below 1 Ω
|
L64-30 (TX-) - L46-19 (TX2-)
| Always
| Below 1 Ω
|
L64-29 (TX+) - Body ground
| Always
| 10 kΩ or higher
|
L64-30 (TX-) - Body ground
| Always
| 10 kΩ or higher
|
| | REPAIR OR REPLACE HARNESS AND CONNECTOR |
|
|
| OK |
|
|
|
| PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|
