METER / GAUGE SYSTEM - Malfunction in Odo / Trip Switch

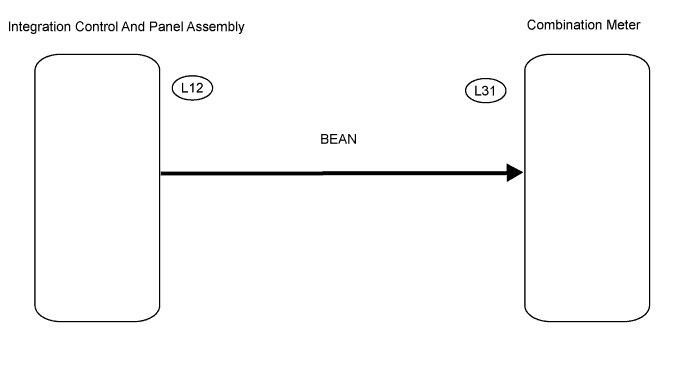

WIRING DIAGRAM


Lexus Gs430, Gs300. Uzs190 Grs190.Meter.Meter / Gauge System.Meter / Gauge System Malfunction In Odo / Trip Switch


INSPECTION PROCEDURE

1.CHECK MULTIPLEX COMMUNICATION SYSTEM
Please follow these procedures (Click here).
If the multiplex communication system is operating normally, proceed to the next step.

Next


2.READ VALUE OF INTELLIGENT TESTER

  1. Operate the intelligent tester according to the display and select the "Data List".

    Integration control and panel assembly:

    Item
    		Measurement Item / Range (Display)
    		Normal Condition
    		Diagnostic Note
    ODO/TRIP Change SW
    		ODO/TRIP switch/ ON or OFF
    		ON: Switch is pushed
    OFF: Switch is not pushed
    		-
    Trip Reset SW
    		TRIP RESET switch/ ON or OFF
    		ON: Switch is pushed
    OFF: Switch is not pushed
    		-
    OK:
    Switch condition (ON/OFF) can be switched by actual operation.


NG
REPLACE INTEGRATION CONTROL AND PANEL ASSEMBLY
OK

REPLACE COMBINATION METER
