  1. REMOVAL AND INSTALLATION OF BATTERY TERMINAL

Meter / Gauge System -- Precaution


NOTICE:
When disconnecting the cable from the negative (-) battery terminal, initialize the following systems after the cable is reconnected.

System Name
See procedure
Power Window Control System
Click here
Sliding Roof System
Clearance Sonar System
Variable Gear Ratio Steering System

1.REMOVAL AND INSTALLATION OF BATTERY TERMINAL


    Lexus Gs430, Gs300. Uzs190 Grs190.Meter.Meter / Gauge System.Meter / Gauge System Precaution

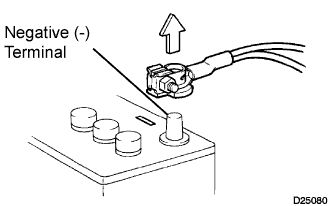

  1. Before performing electronic work, disconnect the battery cable in order to prevent it from shorting and burning out.

  2. When disconnecting and reconnecting the battery cable, turn the engine switch and combination switch off and loosen the terminal nut completely. Perform operations without twisting or prying on the terminal.

  3. When the battery cable is removed, the memories of the clock, radio, DTCs, etc. are erased. So before removing it, check and make a note of them.
