Front Axle Hub Bolt Replacement

Remove the 2 bolts, and disconnect the brake caliper assembly.

NOTICE:

Use a wire or an equivalent to keep the brake caliper from hanging down by the flexible hose.

Put matchmarks on the front disc and the axle hub.

Remove the front disc.

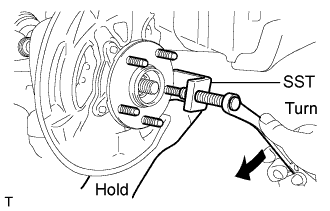

Using SST, remove the front axle hub bolt.

SST

09628-10011

NOTICE:

Do not damage the threads of the hub bolts.

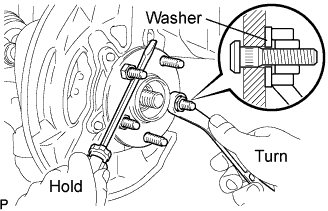

Install a washer and nut to a new bolt as shown in the illustration.

Using a screwdriver or an equivalent to hold the hub, turn the wheel nut to pull the hub bolt until the bottom surface of the hub bolt head touches the axle hub.

NOTICE:

Do not damage the threads of the hub bolts.

Align the matchmarks, and install the front disc.

HINT:

When replacing the disc with a new one, select the installation position where the front disc has the minimum runout.

Install the brake caliper assembly to the steering knuckle with the 2 bolts.

Torque:

78 N*m{795 kgf*cm, 58 ft.*lbf}

NOTICE:

1. Do not twist the front brake hose when installing the front disc brake caliper.

2. Make sure that there are no foreign objects or damage to the threads of the bolts.

3. Do not overtighten the bolts because the steering knuckle is made of aluminum and may be damaged.
