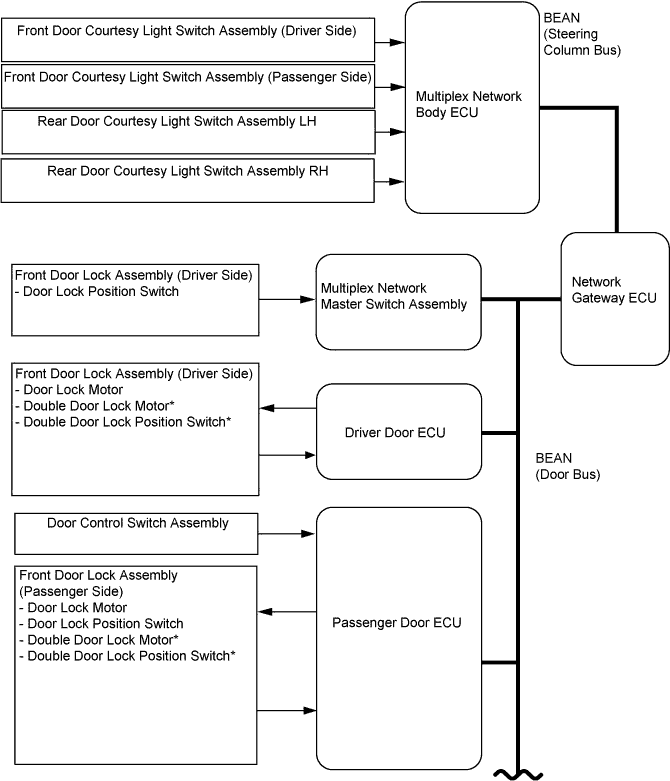

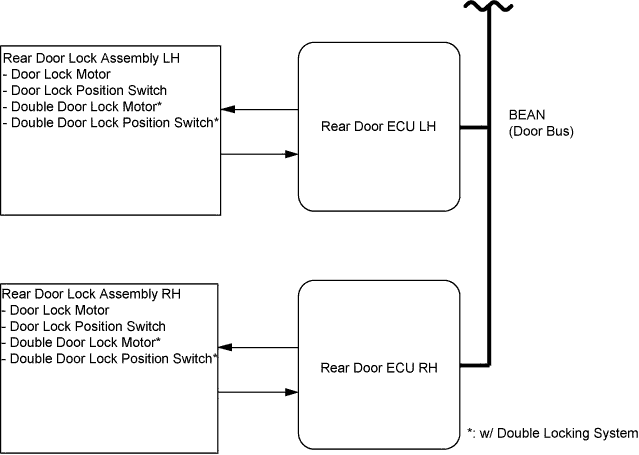

Power Door Lock Control System -- System Diagram

Lexus Gs430, Gs300. Uzs190 Grs190.Door Lock.Power Door Lock Control System.Power Door Lock Control System System Diagram

Lexus Gs430, Gs300. Uzs190 Grs190.Door Lock.Power Door Lock Control System.Power Door Lock Control System System Diagram

Communication table
Sender	Receiver	Signal	Line
Multiplex Network Master Switch Assembly	Multiplex Network Body ECU	Driver side door key-linked switch lock signal	BEAN
Multiplex Network Master Switch Assembly	Multiplex Network Body ECU	Driver side door manual lock switch signal	BEAN
Multiplex Network Master Switch Assembly	Multiplex Network Body ECU	Driver side door lock position switch signal	BEAN
Driver Door ECU	Multiplex Network Body ECU	Driver door double lock position switch signal*	BEAN
Passenger Door ECU	Multiplex Network Body ECU	Passenger side door manual lock switch signal	BEAN
Passenger Door ECU	Multiplex Network Body ECU	Passenger side door lock position switch signal	BEAN
Passenger Door ECU	Multiplex Network Body ECU	Passenger door double lock position switch signal*	BEAN
Rear Door ECU LH	Multiplex Network Body ECU	Rear LH side door lock position switch signal	BEAN
Rear Door ECU LH	Multiplex Network Body ECU	Rear LH door double lock position switch signal	BEAN
Rear Door ECU RH	Multiplex Network Body ECU	Rear RH side door lock position switch signal	BEAN
Rear Door ECU RH	Multiplex Network Body ECU	Rear RH door double lock position switch signal	BEAN
Multiplex Network Body ECU	Driver Door ECU	Driver side door lock control signal	BEAN
Multiplex Network Body ECU	Passenger Door ECU	Passenger side door lock control signal	BEAN
Multiplex Network Body ECU	Rear Door ECU LH	Rear LH side door lock control signal	BEAN
Multiplex Network Body ECU	Rear Door ECU RH	Rear RH side door lock control signal	BEAN

HINT:

*: w/ Double locking system
