Vvt Sensor Installation

Engine. Lexus Gs430, Gs300. Uzs190 Grs190
3Uz-Fe Ignition. Lexus Gs430, Gs300. Uzs190 Grs190

  1. INSTALL VVT SENSOR (BANK 1)

  2. INSTALL VVT SENSOR (BANK 2)

  3. INSTALL INTAKE AIR CONNECTOR PIPE

  4. INSTALL V-BANK COVER

  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

  6. PERFORM INITIALIZATION

Vvt Sensor -- Installation



1. INSTALL VVT SENSOR (BANK 1)


    Lexus Gs430, Gs300. Uzs190 Grs190.3Uz-Fe Ignition.Ignition System.Vvt Sensor Installation

  1. Install the VVT sensor with the bolt.

    Torque:
    7.5 N*m{76 kgf*cm, 66 in.*lbf}

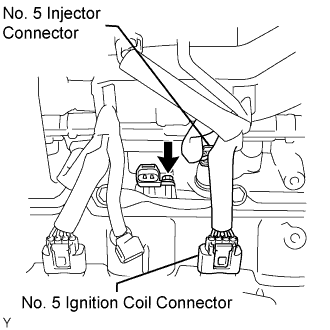

  1. Connect the No. 5 injector connector.

  1. Connect the No. 5 ignition coil connector.

  1. Connect the VVT sensor connector.



2. INSTALL VVT SENSOR (BANK 2)


    Lexus Gs430, Gs300. Uzs190 Grs190.3Uz-Fe Ignition.Ignition System.Vvt Sensor Installation

  1. Install the VVT sensor with the bolt.

    Torque:
    7.5 N*m{76 kgf*cm, 66 in.*lbf}

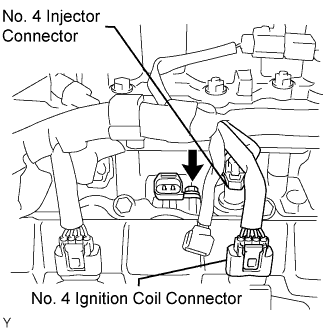

  1. Connect the No. 4 injector connector.

  1. Connect the No. 4 ignition coil connector.

  1. Connect the VVT sensor connector.



3. INSTALL INTAKE AIR CONNECTOR PIPE


    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Install the connector pipe with the bolt and 2 hose clamps.

    Torque:
    4.0 N*m{41 kgf*cm, 35 ft.*lbf} for hose clamps
    5.0 N*m{51 kgf*cm, 44 ft.*lbf} for bolt

  1. Connect the air hose and No. 1 ventilation hose.



4. INSTALL V-BANK COVER

  1. Install the V-bank cover with the 2 nuts.

    Torque:
    5.0 N*m{51 kgf*cm, 44 in.*lbf}


5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL


6. PERFORM INITIALIZATION

  1. Perform initialization (Click here).

    NOTICE:
    Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
