Heated Oxygen Sensor (For Sensor 2) -- Installation |
| 1. INSTALL HEATED OXYGEN SENSOR (for Bank 1) |

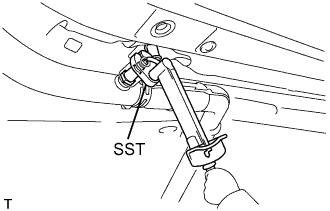

Using SST, install the sensor.
- SST
- 09224-00010
- Torque:
- 40 N*m{408 kgf*cm, 30 ft.*lbf}for use with SST44 N*m{449 kgf*cm, 32 ft.*lbf}for use without SST
- HINT:
- Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
 |
Pass the sensor connector through the floor panel and into the cabin, and install the grommet.
 |
Connect the sensor connector.
| 2. INSTALL HEATED OXYGEN SENSOR (for Bank 2) |

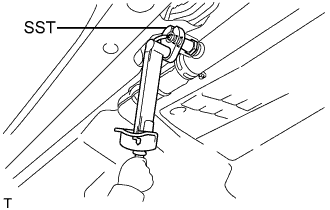

Using SST, install the sensor.
- SST
- 09224-00010
- Torque:
- 40 N*m{408 kgf*cm, 30 ft.*lbf}for use with SST44 N*m{449 kgf*cm, 32 ft.*lbf}for use without ST
- HINT:
- Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
 |
Pass the sensor connector through the floor panel and into the cabin, and install the grommet.
 |
Connect the sensor connector.
| 3. INSTALL INSTRUMENT PANEL FINISH PANEL END LH |
 |
Attach the 4 clips and 3 claws to install the finish panel end.
Install the screw.
| 4. INSTALL INSTRUMENT PANEL FINISH PANEL END RH |
 |
Attach the 3 clips and 3 claws to install the finish panel end.
Install the screw.
| 5. INSTALL FRONT ASH RECEPTACLE ASSEMBLY |
 |
Connect the connector.
Attach the 9 clips to install the ash receptacle.
Install the shift lever knob and twist it in the direction indicated by the arrow.
 |
| 6. INSTALL FRONT CONSOLE UPPER PANEL GARNISH |
Attach the claws to install the garnish.
| 7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL |
| 8. PERFORM INITIALIZATION |
Perform initialization (Click here).
- NOTICE:
- Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
