Power Door Lock Control System Diagnosis System
DESCRIPTION
CHECK DLC3
Power Door Lock Control System -- Diagnosis System |
Power door lock control system data and the Diagnostic Trouble Codes (DTCs) can be read through the Data Link Connector 3 (DLC3) of the vehicle. When the system seems to be malfunctioning, use the intelligent tester to check for malfunctions and perform repairs.
If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.
- HINT:
- The vehicle uses ISO 14230 (M-OBD) communication protocol. The terminal arrangement of the DLC3 complies with ISO 15031-03 and matches the ISO 14230 format.
Symbols (Terminal No.)
| Terminal Description
| Condition
| Specified Condition
|
CG (4) - Body ground
| Chassis ground
| Always
| Below 1 Ω
|
SG (5) - Body ground
| Signal ground
| Always
| Below 1 Ω
|
SIL (7) - SG (5)
| Bus "+" line
| During transmission
| Pulse generation
|
BAT (16) - Body ground
| Battery positive
| Always
| 10 to 14 V
|
- HINT:

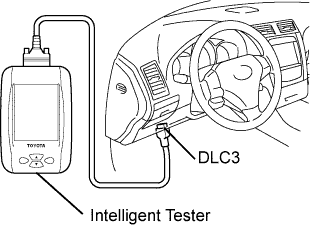

- Connect the cable of the intelligent tester to the DLC3, turn the engine switch on (IG) and attempt to use the tester. If the display indicates that a communication error has occurred, there is a problem either with the vehicle or with the tester.
- If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the original vehicle.
- If communication is still not possible when the tester is connected to another vehicle, the problem may be in the tester itself. Consult the Service Department listed in the tester's instruction manual.
