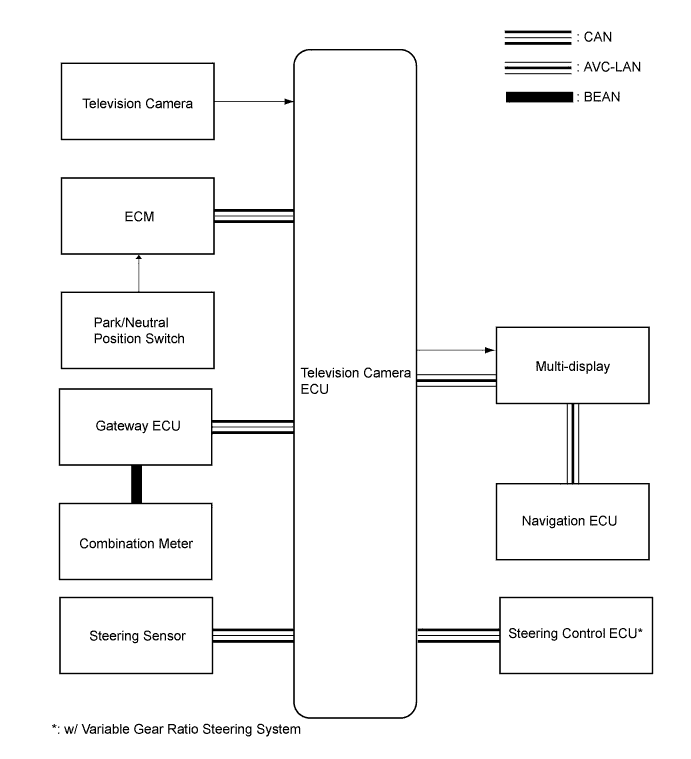

Parking Assist Monitor System -- System Diagram



Lexus Gs430, Gs300. Uzs190 Grs190.Park Assist Monitoring.Clearance Sonar System.Parking Assist Monitor System System Diagram


Communication table:
Transmitting ECU
(transmitter)
Receiving ECU
Signals
Line
Navigation ECU
Television Camera ECU
Vehicle angle data signal
AVC-LAN
ECM
Television Camera ECU
Shift R position signal
CAN
Steering Sensor
Television Camera ECU
Steering angle signal
CAN
Combination Meter
Television Camera ECU
Vehicle speed signal
BEAN, CAN
Steering Control ECU
Television Camera ECU
Variable gear ratio steering relative angle signal
CAN
