Rear View Monitor System -- Terminals Of Ecu |

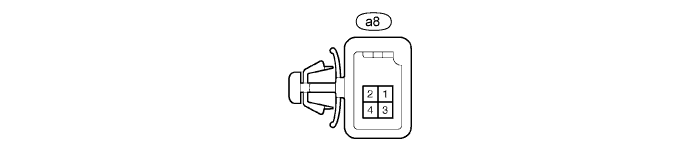

CHECK TELEVISION CAMERA |

Symbols (Terminal No.) | Wiring Color | Terminal Description | Condition | Specified Condition |
CV- (a8-1) - CGND (a8-3) | Shielded - W | Display signal (-) | Always | Below 1 Ω |
CV+ (a8-2) - CGND (a8-3) | R - W | Display signal (+) | Engine switch on (IG), shift lever in R position | Pulse generation (see waveform 1) |
CGND (a8-3) - Body ground | W - Body ground | Power ground | Always | Below 1 Ω |
CB+ (a8-4) - CGND (a8-3) | B - W | Power ground | Engine switch on (IG), shift lever in R position | Approx. 6 V |
Reference:
Waveform 1
Item Content Symbols
(Terminal No.)CV+ (a8-2) - CV- (a8-1) Tool Setting 0.2 V/DIV., 0.2 μsec./DIV. Condition Engine switch on (IG)
Shift lever in R position- HINT:
- Depending on what the camera is showing, the GND level changes.
![]() |
CHECK TELEVISION CAMERA ECU |

Symbols (Terminal No.) | Wiring Color | Terminal Description | Condition | Specified Condition |
+B (L65-1) - GND1 (L65-8) | L - W-B | Battery supply | Always | 10 to 14 V |
IG (L65-2) - GND1 (L65-8) | B - W-B | Engine switch on (IG) signal input | Engine switch on (IG) | 10 to 14 V |
ACC (L65-5) - GND1 (L65-8) | SB - W-B | Engine switch on (ACC) signal input | Engine switch on (IG or ACC) | 10 to 14 V |
GND1 (L65-8) - Body ground | W-B - Body ground | Power ground | Always | Below 1 Ω |
CANL (L64-7) - CANH (L64-8) | W - R | CAN communication | Engine switch off | 54 to 67 Ω |
VG (L64-9) - GND1 (L65-8) | Shielded - W-B | Display signal output ground (Shielded) | Always | Below 1 Ω |
R (L64-10) - GND1 (L65-8) | B - W-B | Display signal output (Red) | Map or back monitor is displayed | Pulse generation (see waveform 2) |
G (L64-11) - GND1 (L65-8) | W - W-B | Display signal output (Green) | Map or back monitor is displayed | Pulse generation (see waveform 2) |
B (L64-12) - GND1 (L65-8) | Y - W-B | Display signal output (Blue) | Map or back monitor is displayed | Pulse generation (see waveform 2) |
CGND (L64-19) - GND1 (L65-8) | W - W-B | Television camera ground | Always | Below 1 Ω |
CB+ (L64-20) - GND1 (L65-8) | B - W-B | Power source to television camera | Engine switch on (IG), shift lever in R position | Approx. 6 V |
TX+ (L64-29) - GND1 (L65-8) | P - W-B | AVC-LAN control bus | Engine switch on (ACC) | 2 to 3 V |
TX- (L64-30) - GND1 (L65-8) | V - W-B | AVC-LAN control bus | Engine switch on (ACC) | 2 to 3 V |
SYNC (L64-31) - GND1 (L65-8) | G - W-B | Synchronized signal output | Map or back monitor is displayed | Pulse generation (see waveform 3) |
VR (L64-32) - GND1 (L65-8) | R - W-B | Display signal output ground | Always | Below 1 Ω |
CV- (L64-39) - GND1 (L65-8) | Shielded - W-B | Television camera ground (Shielded) | Always | Below 1 Ω |
CV+ (L64-40) - GND1 (L65-8) | R - W-B | Display signal of television camera input | Engine switch on (IG), shift lever in R position | Pulse generation (see waveform 1) |
Reference:
Waveform 1
Item Content Symbols
(Terminal No.)CV+ (L64-40) - GND1 (L65-8) Tool Setting 0.2 V/DIV., 0.2 μsec./DIV. Condition Engine switch on (IG)
Shift lever in R position- HINT:
- Depending on what the camera is showing, the GND level changes.
Waveform 2
Item Content Symbols
(Terminal No.)R (L64-10) - GND1 (L65-8)
G (L64-11) - GND1 (L65-8)
B (L64-12) - GND1 (L65-8)Tool Setting 200 mV/DIV., 10 μsec./DIV. Condition Image is displayed
(Rear view monitor or navigation system)- HINT:
- Depending on what the camera is showing, the GND level changes.
Waveform 3
Item Content Symbols
(Terminal No.)SYNC (L64-31) - GND1 (L65-8) Tool Setting 500 mV/DIV., 10 μsec./DIV. Condition Image is displayed
(Rear view monitor or navigation system)
![]() |
