Navigation System Screen Flicker Or Color Distortion

INSPECTION PROCEDURE

CHECK DISPLAY SETTING

CHECK CABIN

CHECK COLOR BAR (DISPLAY CHECK MODE)

CHECK NAVI COLOR BAR (NAVIGATION CHECK MODE)

INSPECTION PROCEDURE

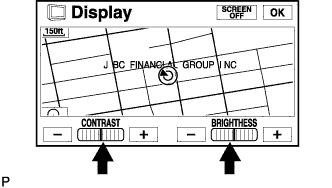

1. Enter the display adjustment screen by pressing the "DISP" switch.


2. Reset display settings (contrast, brightness) and check that the screen appears normal.

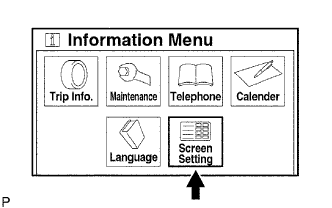

3. Press the "INFO" switch and then select "Screen Setting."

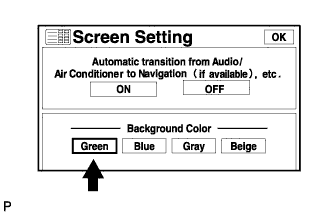

4. Set the "Background Color" to "Green" (initial setting) and check if the display returns to normal.


   OK:

   Returns to normal.


1. Check that the cabin temperature is warmer than -20°C (-4.0°F).


   OK:

   Cabin is warmer than -20°C (-4.0°F).

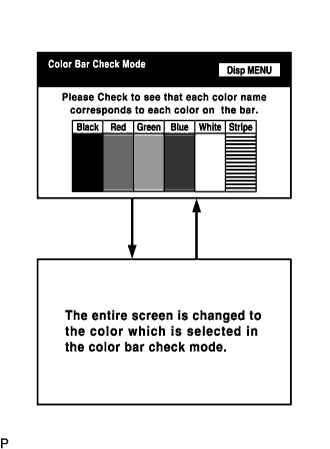

1. Enter the "Display Check" mode (Color Bar Check Mode) (Click here).


2. Check that the color bars match the displayed names.


   OK:

   Color bars match the displayed names.

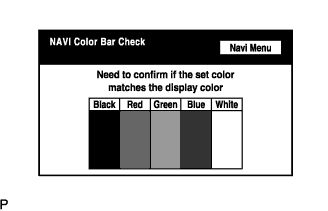

1. Enter the "Navigation Check" mode (NAVI Color Bar Check) (Click here).


2. Check that the color bars match the displayed names.


   OK:

   Color bars match the displayed names.
