CHECK VEHICLE SPEED SIGNAL CIRCUIT BETWEEN MULTI-DISPLAY AND COMBINATION METER
NAVIGATION SYSTEM - Vehicle Speed Signal Circuit between Navigation ECU and Combination Meter |
DESCRIPTION

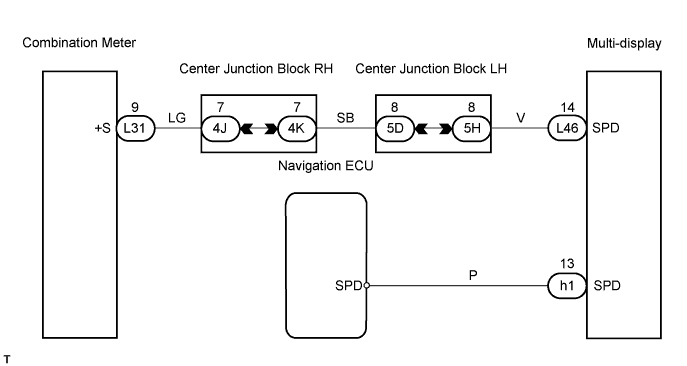

The navigation ECU receives the vehicle speed signal and information about the GPS antenna, and then adjusts the vehicle position.WIRING DIAGRAM
INSPECTION PROCEDURE
| 1.CHECK VEHICLE SPEED SIGNAL CIRCUIT BETWEEN MULTI-DISPLAY AND COMBINATION METER |
If the speed signal circuit is operating normally, proceed to the next step.
| NEXT | ||
| ||
