Navigation System Gps Mark Is Not Displayed

INSPECTION PROCEDURE

CHECK CABIN

CHECK SURROUNDINGS

CHECK GPS INFORMATION (NAVIGATION CHECK MODE)

INSPECTION PROCEDURE

1. Check the cabin for any object that might interrupt radio reception on the instrument panel. If such an object exists, remove it and check if the GPS mark reappears.


   HINT:

   The GPS uses extremely faint radio waves originating from satellites. If the signal is interrupted by obstructions or other radio waves, the GPS may not be able to properly receive the signal.

   OK:

   Mark appears.


1. Check if the vehicle is in a location where GPS signal reception is poor. If the vehicle is in such a place, relocate the vehicle and check if the GPS mark reappears.


   HINT:

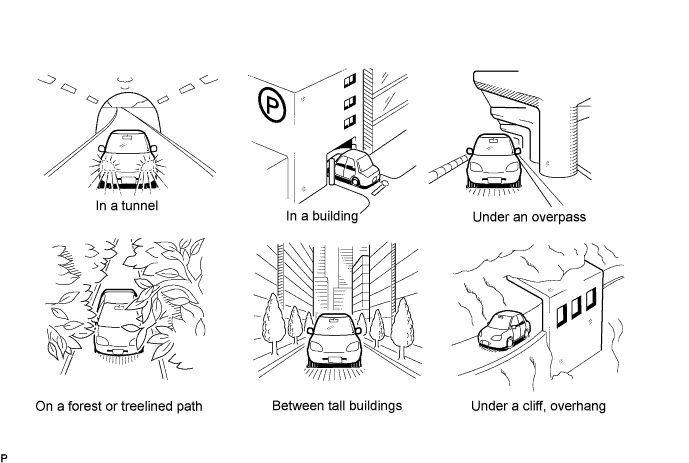

   The GPS uses 24 satellites in 6 orbits. At any time, 5 satellites should be able to pinpoint your vehicle. However, GPS signals may not reach the vehicle due to influence from the surroundings, vehicle direction and time of day. For illustrated examples, see below.






   OK:

   GPS mark is displayed.

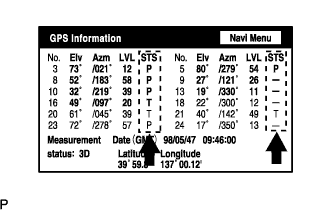

1. Enter the "Navigation Check" mode (GPS Information) (Click here).


2. Check how many of the following codes appear in the "STS" column.


   For DENSO Made:

   T, P


   For AISIN AW Made:

   03H, 04H


   OK:

   At least 3 codes appear.
