Navigation System Display Check Mode

Enter diagnostic mode (Click here).

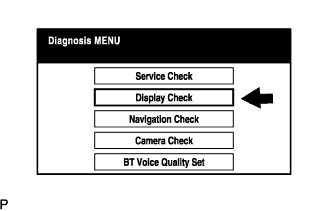

Select "Display Check" from the "Diagnosis MENU" screen.

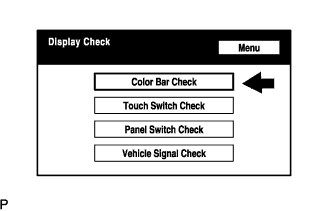

Select "Color Bar Check" from the "Display Check" screen.

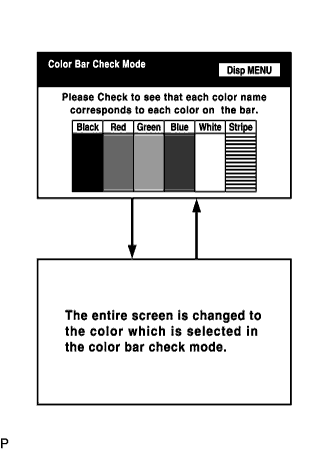

Select a color bar from the "Color Bar Check Mode" screen.

HINT:

1. The entire screen turns to the color or stripe selected.

2. Touching the display will return to the "Color Bar Check" screen.


Enter diagnostic mode (Click here).

Select "Display Check" from the "Diagnosis MENU" screen.

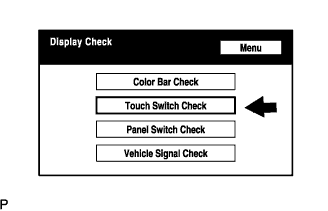

Select "Touch Switch Check" from the "Display Check" screen.

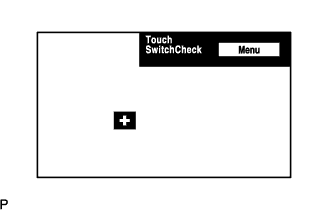

Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

HINT:

1. A "+" mark is displayed where the display is touched.

2. The "+" mark remains on the display even after the finger is removed.


Enter diagnostic mode (Click here).

Select "Display Check" from the "Diagnosis MENU" screen.

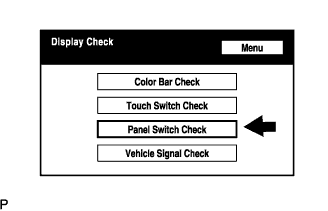

Select "Panel Switch Check" from the "Display Check" screen.

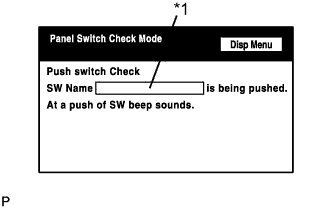

Operate each switch and check that the switch name and condition are correctly displayed.

Enter diagnostic mode (Click here).

Select "Display Check" from the "Diagnosis MENU" screen.

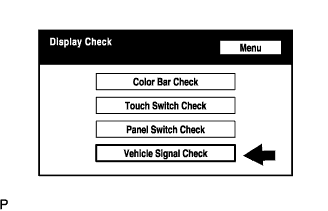

Select "Vehicle Signal Check" from the "Display Check" screen.

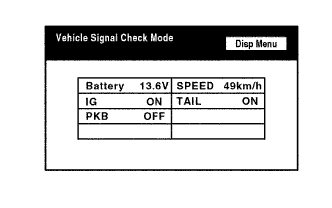

When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.

HINT:

1. Only conditions having inputs are displayed.

2. This screen is updated once per second when input signals to the vehicle are changed.
