Wiper And Washer System Wiper And Washer Switch Circuit
DESCRIPTION
WIRING DIAGRAM
INSPECTION PROCEDURE
READ VALUE OF INTELLIGENT TESTER
CHECK WINDSHIELD WIPER SWITCH ASSEMBLY (COMBINATION SWITCH ECU)
CHECK WIRE HARNESS (WINDSHIELD WIPER SWITCH ASSEMBLY - BATTERY)
WIPER AND WASHER SYSTEM - Wiper and Washer Switch Circuit |
DESCRIPTION
This circuit provides power to operate the windshield wiper switch. The manual operation signals are sent to the cowl side junction block ECU LH.

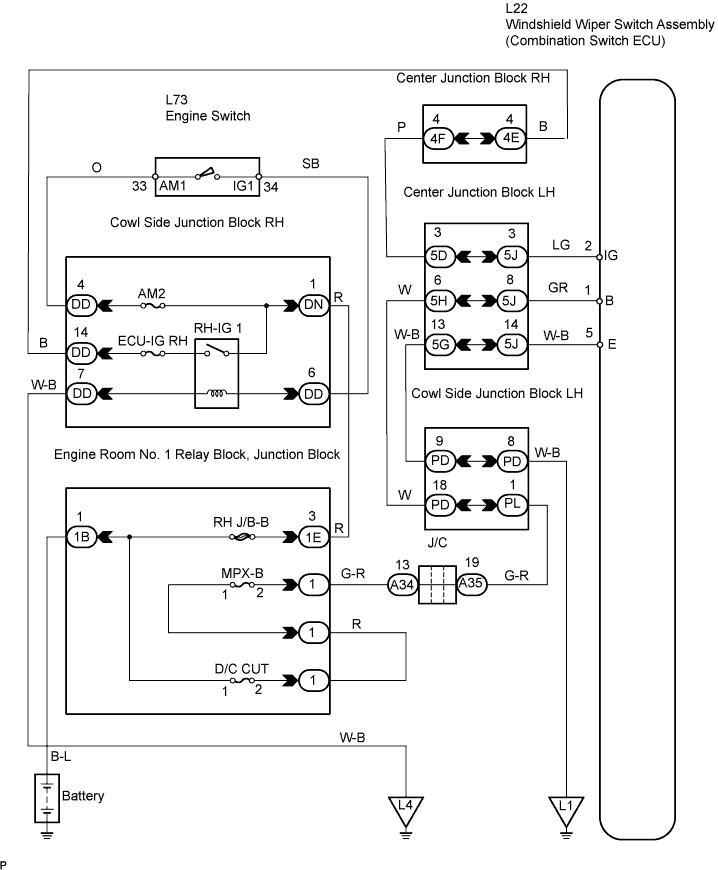

WIRING DIAGRAM
INSPECTION PROCEDURE
- HINT:
- Before the procedure, check that the Multiplex Communication System (MPX) DTCs are not output (Click here).
1.READ VALUE OF INTELLIGENT TESTER |
Connect the intelligent tester to the DLC3.
Turn the engine switch on (IG) and turn the tester's main switch ON.
Select the items below in the Data List, and read the display on the tester.
- Combination switch ECU (Windshield wiper switch assembly):
Item
| Measurement ltem / Display (Range)
| Normal Condition
| Diagnostic Note
|
F WASHER Switch
| Front washer switch / ON or OFF
| ON: Front washer switch ON OFF: Front washer switch OFF
| -
|
F WIPER MIST Switch
| Front wiper MIST switch / ON or OFF
| ON: Front wiper switch in MIST OFF: Wiper switch not in MIST
| -
|
F WIPER AUTO Switch
| Front wiper AUTO switch / ON or OFF
| ON: Front wiper switch in AUTO OFF: Front switch not in AUTO
| -
|
F WIPER HI Switch
| Front wiper HI switch / ON or OFF
| ON: Front wiper switch in HI OFF: Wiper switch not in HI
| -
|
F WIPER LO Switch
| Front wiper LO switch / ON or OFF
| ON: Front wiper switch in LO OFF: Wiper switch not in LO
| -
|
F WIPER INT Switch
| Front wiper INT switch / ON or OFF
| ON: Front wiper switch in INT OFF: Wiper switch not in INT
| -
|
IG Switch SIG
| Engine switch signal / ON or OFF
| ON: Engine switch on (IG) OFF: Engine switch off
| -
|
Item
| Front Wiper Volume Position
|
Item explanation
| Wiper volume position
|
FR wiper volume "+" position
| 0 degrees
|
Switch is turned one notch towards the "-" side from the FR wiper volume "+" position
| 27 degrees
|
Switch is turned one notch towards the "+" side from the FR wiper volume "-" position
| 63 degrees
|
FR wiper volume "-" position
| 90 degrees
|
Inspection area when malfunction occurs
| Windshield wiper switch assembly (Front wiper volume)
|
OK |
|
|
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|
2.CHECK WINDSHIELD WIPER SWITCH ASSEMBLY (COMBINATION SWITCH ECU) |

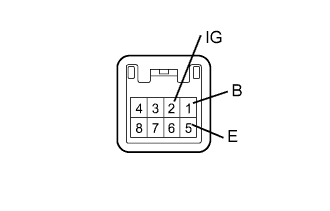

Disconnect the L22 switch connector.
Measure the voltage of the connector.
- Standard voltage:
Tester Connection
| Condition
| Specified Condition
|
L22-1 (B) - L22-5 (E)
| Always
| 10 to 14 V
|
L22-2 (IG) - L22-5 (E)
| Engine switch off
| Below 1 V
|
L22-2 (IG) - L22-5 (E)
| Engine switch on (IG)
| 10 to 14 V
|
OK |
|
|
|
REPLACE WINDSHIELD WIPER SWITCH ASSEMBLY (COMBINATION SWITCH ECU) |
|
3.CHECK WIRE HARNESS (WINDSHIELD WIPER SWITCH ASSEMBLY - BATTERY) |
Disconnect the L22 switch connector.
Measure the voltage of the wire harness side connector.
- Standard voltage:
Tester Connection
| Condition
| Specified Condition
|
L22-1 (B) - Body ground
| Always
| 10 to 14 V
|
L22-2 (IG) - Body ground
| Engine switch off
| Below 1 V
|
L22-2 (IG) - Body ground
| Engine switch on (IG)
| 10 to 14 V
|
| REPAIR OR REPLACE HARNESS AND CONNECTOR (ENGINE SWITCH CIRCUIT OR BATTERY CIRCUIT) |
|
|
OK |
|
|
|
REPAIR OR REPLACE HARNESS AND CONNECTOR (GROUND CIRCUIT) |
|
