Transmission. Lexus Gs430, Gs300. Uzs190 Grs190
A761E Automatic Transmission. Lexus Gs430, Gs300. Uzs190 Grs190
Park / Neutral Position Switch -- Removal |
| 1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |
| 2. REMOVE ENGINE UNDER COVER NO.2 |
| 3. REMOVE FRONT EXHAUST PIPE ASSEMBLY |
| 4. REMOVE ENGINE UNDER COVER AIR GUIDE BRACKET |
Remove the 2 bolts and engine under cover air guide bracket.
 |
| 5. REMOVE PROPELLER W/CENTER BEARING SHAFT ASSEMBLY |
| 6. DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY |
Remove the nut and separate the floor shift gear shifting rod sub-assembly.
 |
| 7. SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY |
Support the automatic transmission with a transmission jack.
 |
| 8. SEPARATE ENGINE REAR MOUNTING MEMBER |
Remove the 4 bolts and separate the engine rear mounting member.
 |
Remove the 4 nuts and engine rear mounting member.
 |
| 9. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
Disconnect the park/neutral position switch connector.
 |
Remove the nut and transmission control shaft lever RH.
 |

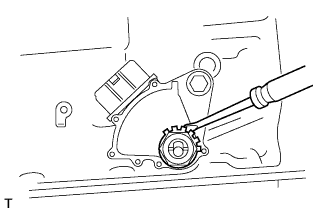

Using a screwdriver, pry out the lock washer.
 |
Remove the lock nut and lock washer.
 |
Remove the bolt and park/neutral position switch.
 |
