Clearance Sonar System System Diagram

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Park Assist Monitoring. Lexus Gs430, Gs300. Uzs190 Grs190

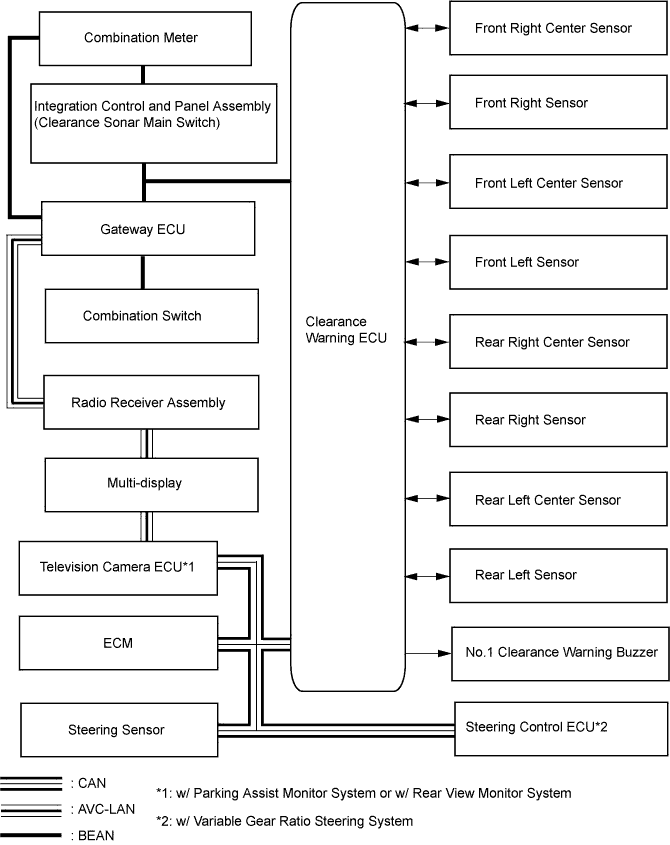

Clearance Sonar System -- System Diagram



Lexus Gs430, Gs300. Uzs190 Grs190.Park Assist Monitoring.Clearance Sonar System.Clearance Sonar System System Diagram


Input signal to clearance warning ECU
Transmitting ECU
(transmitter)
Signals
Communication Method
Combination Meter
Vehicle speed signal
BEAN
Outer Mirror Switch
Clearance sonar main switch signal
BEAN
Combination Switch
Tail switch signal
BEAN
ECM
Shift position signal
BEAN
Steering Sensor
Steering signal
CAN
Steering Control ECU
Variable gear ratio steering signal
CAN
Multi-display
Clearance sonar system setting change signal
AVC-LAN - BEAN

Output signal from clearance warning ECU
Receiving ECU
Signals
Communication Method
Combination Meter
Display signal
BEAN
Multi-display
Display signal
AVC-LAN
