  1. INSPECT HEADLIGHT RELAY (Marking: HEAD LP)

Headlight Relay -- Inspection



1. INSPECT HEADLIGHT RELAY (Marking: HEAD LP)


Lexus Gs430, Gs300. Uzs190 Grs190.Lighting.Lighting System.Headlight Relay Inspection

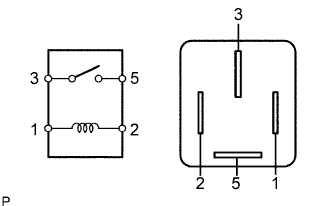

  1. Measure the resistance of the relay.

    Standard resistance:
    Tester Connection
    		Specified Condition
    3 - 5
    		10 kΩ or higher
    3 - 5
    		Below 1 Ω (when battery voltage is applied to terminals 1 and 2)
    If the result is not as specified, replace the relay.
