Transfer Adapter Oil Seal Replacement


  1. REMOVE TRANSFER ASSEMBLY

  2. REMOVE TRANSFER ADAPTER OIL SEAL

  3. INSTALL TRANSFER ADAPTER OIL SEAL

  4. INSTALL TRANSFER ASSEMBLY

Transfer Adapter Oil Seal -- Replacement



1. REMOVE TRANSFER ASSEMBLY
(LandCruiser RM000001QHY030X.html)


2. REMOVE TRANSFER ADAPTER OIL SEAL


    Land Cruiser, Land Cruiser Prado. Grj150 Trj150,155 Kdj150,155 Lj150, Gdj150,155.Ac60F Automatic Transmission Transaxle.Automatic Transmission System (For 1Gr-Fe).Transfer Adapter Oil Seal Replacement

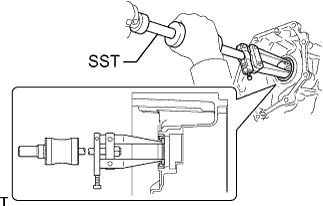

  1. Using SST, remove the transfer adapter oil seal.

    SST
    09308-00010


3. INSTALL TRANSFER ADAPTER OIL SEAL

  1. Coat the lip of a new transfer adapter oil seal with MP grease.



    Land Cruiser, Land Cruiser Prado. Grj150 Trj150,155 Kdj150,155 Lj150, Gdj150,155.Ac60F Automatic Transmission Transaxle.Automatic Transmission System (For 1Gr-Fe).Transfer Adapter Oil Seal Replacement

  1. Using SST and a hammer, tap in the transfer adapter oil seal.

    SST
    09950-60010(09951-00650)
    09950-70010(09951-07150)
    Standard depth:
    0 to 0.5 mm (0 to 0.0197 in.)
    NOTICE:
    1. Make sure that the transfer adapter oil seal is installed in the correct direction.
    2. Do not damage the lip of the transfer adapter oil seal.


4. INSTALL TRANSFER ASSEMBLY
(LandCruiser RM000001QHX02ZX.html)
