Side Turn Signal Light Assembly (For Outer Rear View Mirror) Inspection

Vehicle Exterior. Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25
Lighting (Ext). Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25

  1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH

  2. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY RH

Side Turn Signal Light Assembly (For Outer Rear View Mirror) -- Inspection



1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH


    Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25.Lighting (Ext).Lighting System.Side Turn Signal Light Assembly (For Outer Rear View Mirror) Inspection

  1. Apply battery voltage to the connector and check the bulb illumination condition.

    OK:
    Measurement Condition
    		Specified Condition
    Battery positive (+) → 1
    Battery negative (-) → 2
    		Side turn signal light assembly LH comes on
    If the result is not as specified, replace the side turn signal light assembly LH.

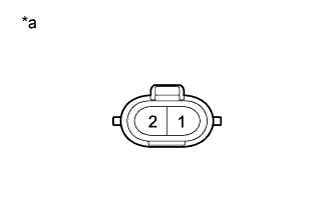

    Text in Illustration
    *a
    		Component without harness connected
    (Side Turn Signal Light Assembly LH)


2. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY RH


    Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25.Lighting (Ext).Lighting System.Side Turn Signal Light Assembly (For Outer Rear View Mirror) Inspection

  1. Apply battery voltage to the connector and check the bulb illumination condition.

    OK:
    Measurement Condition
    		Specified Condition
    Battery positive (+) → 1
    Battery negative (-) → 2
    		Side turn signal light assembly RH comes on
    If the result is not as specified, replace the side turn signal light assembly RH.
    Text in Illustration
    *a
    		Component without harness connected
    (Side Turn Signal Light Assembly RH)
