Radio Antenna Cord Installation

Audio Visual Telematics. Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25
Audio Video. Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25

  1. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Double Cab)

  2. INSTALL ROOF HEADLINING ASSEMBLY

  3. INSTALL ANTENNA CORD SUB-ASSEMBLY

  4. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY

  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

  6. CHECK SRS WARNING LIGHT

Radio Antenna Cord -- Installation



1. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Double Cab)

  1. Attach the 9 clamps to install the antenna cord.



  1. Connect the 2 connectors.


    Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25.Audio Video.Audio And Visual System (For Radio Receiver Type).Radio Antenna Cord Installation



2. INSTALL ROOF HEADLINING ASSEMBLY
(HILUX_TGN26 RM00000148N012X.html)


3. INSTALL ANTENNA CORD SUB-ASSEMBLY


  1. w/ Roof Antenna:

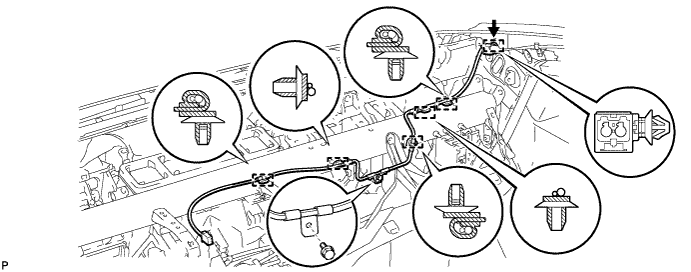

    1. Install the antenna cord with the clamp bolt.


      Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25.Audio Video.Audio And Visual System (For Radio Receiver Type).Radio Antenna Cord Installation

    2. Attach the 6 clamps.

    3. Connect the connector.



  1. w/o Roof Antenna:

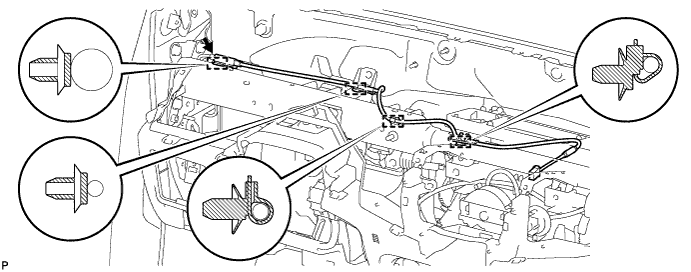

    1. Attach the 4 clamps shown in the illustration to install the antenna cord.


      Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25.Audio Video.Audio And Visual System (For Radio Receiver Type).Radio Antenna Cord Installation

    2. Connect the connector.



4. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY
(HILUX_TGN26 RM000003O2K00IX.html)


5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (HILUX_TGN26 RM000004QR3009X.html).


6. CHECK SRS WARNING LIGHT
(HILUX_TGN26 RM000000XFD0G9X.html)
