Dtc C1282/82 Center Differential Lock Position Switch Malfunction (Test Mode Dtc)

Brake. Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25
Brake Control Dynamic Control Systems. Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25

DESCRIPTION

WIRING DIAGRAM

INSPECTION PROCEDURE

CHECK TERMINAL VOLTAGE (EXI TERMINAL)

CHECK TEST MODE DTC

CHECK HARNESS AND CONNECTOR (EXI CIRCUIT)

DTC C1282/82 Center Differential Lock Position Switch Malfunction (Test Mode DTC)


DESCRIPTION

DTC C1282/82 is output only in Test Mode.

DTC Code
DTC Detection Condition
Trouble area
C1282/82
Detected only during Test Mode.
  1. Transfer system
  2. Harness or connector
  3. Skid control ECU (Brake actuator assembly)

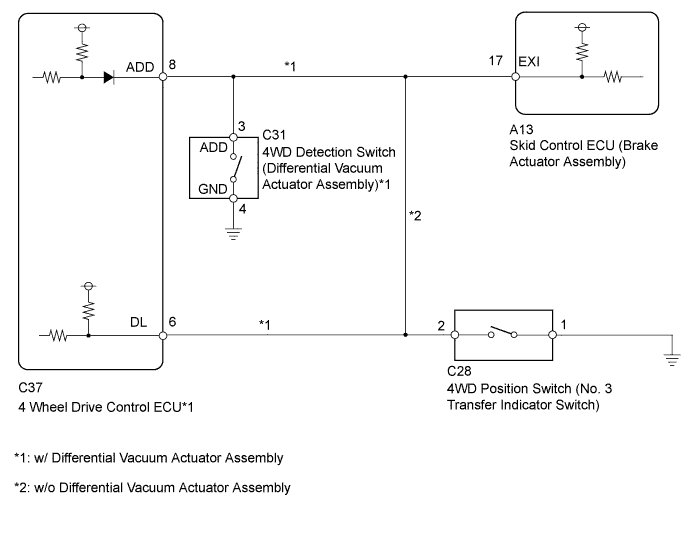

WIRING DIAGRAM


Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25.Brake Control Dynamic Control Systems.Anti-Lock Brake System. Dtc C1282/82 Center Differential Lock Position Switch Malfunction (Test Mode Dtc)


INSPECTION PROCEDURE

NOTICE:
  1. Before disconnecting the connector, make sure that there are no problems with the connection.
  2. After disconnecting the connector, make sure that the connector case and terminals are not deformed or corroded.
1.CHECK TERMINAL VOLTAGE (EXI TERMINAL)
Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25.Brake Control Dynamic Control Systems.Anti-Lock Brake System. Dtc C1282/82 Center Differential Lock Position Switch Malfunction (Test Mode Dtc)

  1. Set the vehicle to the 4WD state using the transfer shift lever.

  1. Disconnect the skid control ECU (brake actuator assembly) connector.

  1. Measure the voltage according to the value(s) in the table below.

    Standard Voltage:
    Tester Connection
    		Condition
    		Specified Condition
    A13-17 (EXI) - Body ground
    1. Ignition switch ON
    2. Transfer shift position H4
    		Below 1.5 V

  1. Connect the skid control ECU (brake actuator assembly) connector.

  1. Set the vehicle to the 2WD state using the transfer shift lever.

  1. Disconnect the skid control ECU (brake actuator assembly) connector.

  1. Measure the voltage according to the value(s) in the table below.

    Standard Voltage:
    Tester Connection
    		Condition
    		Specified Condition
    A13-17 (EXI) - Body ground
    1. Ignition switch ON
    2. Transfer shift position H2
    		11 to 14 V

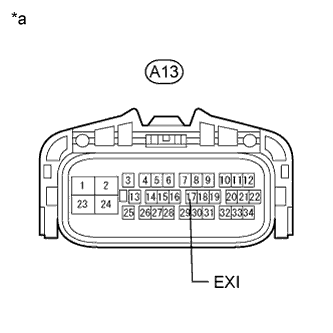

Text in Illustration
*a
Front view of wire harness connector
(to Skid Control ECU [Brake Actuator Assembly])


NG
Go to step 3
OK


2.CHECK TEST MODE DTC

  1. Switch the vehicle to Test Mode, perform the H2 to L4 shift operation check, and then check that DTC C1282/82 is not stored (HILUX_TGN26 RM000000XHT0BEX.html).

    Result
    Result
    		Proceed to
    DTC is stored
    		A
    DTC is not stored
    		B


B
USE SIMULATION METHOD TO CHECK (HILUX_TGN26 RM000004QR7008X.html)
A

REPLACE BRAKE ACTUATOR ASSEMBLY (HILUX_TGN26 RM0000010K001NX.html)

3.CHECK HARNESS AND CONNECTOR (EXI CIRCUIT)

  1. Turn the ignition switch off.

  1. Disconnect the skid control ECU (brake actuator assembly) connector.

  1. w/ Differential Vacuum Actuator Assembly:
    Disconnect the 4WD detection switch (differential vacuum actuator assembly) connector.
    w/o Differential Vacuum Actuator Assembly:
    Disconnect the 4WD position switch (No. 3 transfer indicator switch) connector.

  1. w/ Differential Vacuum Actuator Assembly:
    Disconnect the 4 wheel drive control ECU connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    w/ Differential Vacuum Actuator Assembly:
    Tester Connection
    		Condition
    		Specified Condition
    A13-17 (EXI) - C31-3 (ADD)
    		Always
    		Below 1 Ω
    A13-17 (EXI) - C37-8 (ADD)
    		Always
    		Below 1 Ω
    A13-17 (EXI) - Body ground
    		Always
    		10 kΩ or higher
    C31-4 (GND) - Body ground
    		Always
    		Below 1 Ω
    w/o Differential Vacuum Actuator Assembly:
    Tester Connection
    		Condition
    		Specified Condition
    A13-17 (EXI) - C28-2
    		Always
    		Below 1 Ω
    A13-17 (EXI) - Body ground
    		Always
    		10 kΩ or higher
    C28-1 - Body ground
    		Always
    		Below 1 Ω


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

GO TO TRANSFER SYSTEM (PROBLEM SYMPTOMS TABLE) (HILUX_TGN26 RM0000011JJ026X.html)
