Audio And Visual System (For Radio Receiver Type) Speaker Circuit

DESCRIPTION

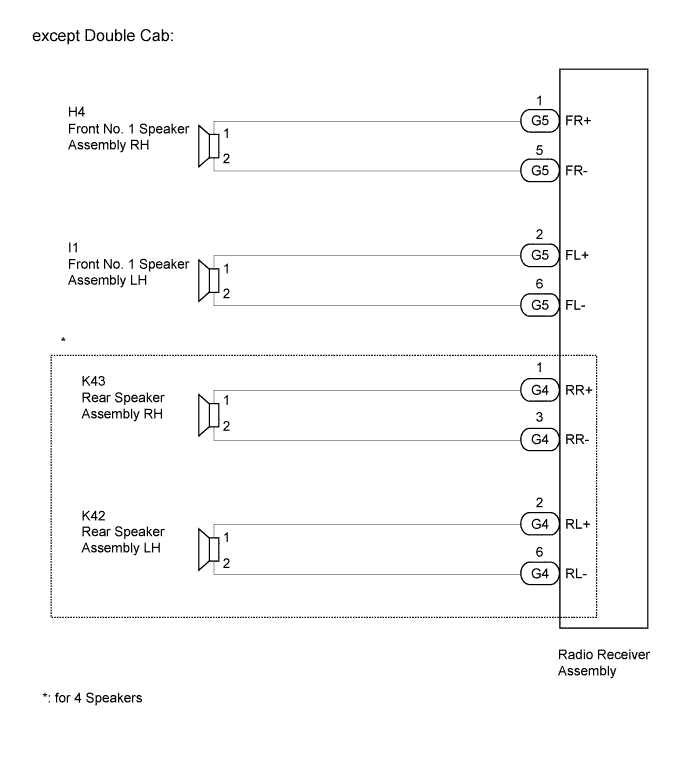

WIRING DIAGRAM

INSPECTION PROCEDURE

CHECK SPEAKER

CHECK FRONT SIDE SPEAKER

INSPECT FRONT NO. 2 SPEAKER ASSEMBLY

CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - FRONT NO. 2 SPEAKER)

INSPECT FRONT NO. 1 SPEAKER ASSEMBLY

CHECK HARNESS AND CONNECTOR (FRONT NO. 2 SPEAKER - FRONT NO. 1 SPEAKER)

CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - FRONT NO. 1 SPEAKER)

INSPECT REAR SPEAKER ASSEMBLY

CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - REAR SPEAKER)

INSPECT REAR SPEAKER ASSEMBLY

CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - REAR SPEAKER)

DESCRIPTION

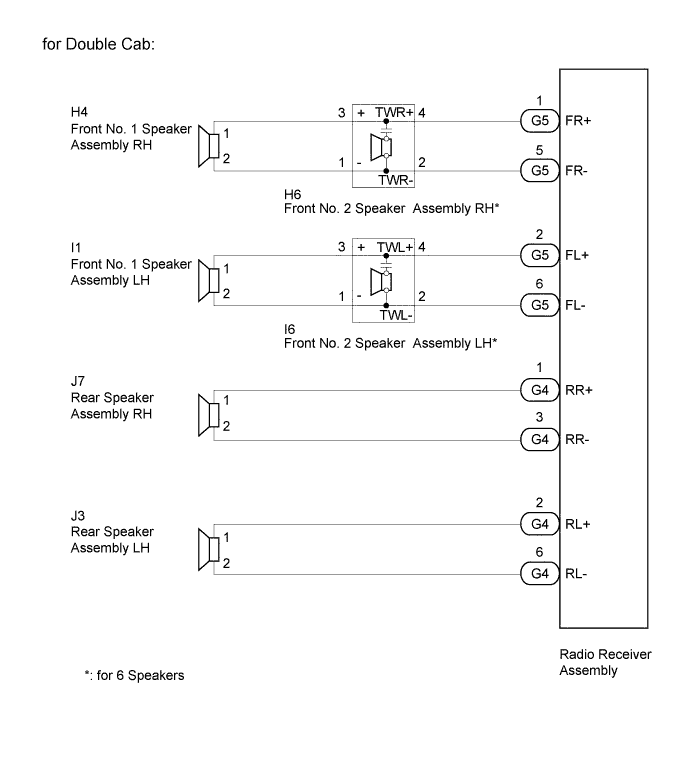

WIRING DIAGRAM

INSPECTION PROCEDURE

1. Check the malfunctioning speakers.


   Result

   Result	Proceed to
   Malfunction in front speaker area (for Double Cab)	A
   Malfunction in front speaker area (except Double Cab)	B
   Malfunction in rear speaker area (for Double Cab)	C
   Malfunction in rear speaker area (except Double Cab [for 4 Speakers])	D

1. Check the malfunctioning speakers.


   Result

   Result	Proceed to
   Front No. 2 speaker assembly*	A
   Front No. 1 speaker assembly	B

   1. *: for 6 Speakers


1. Temporarily replace the speaker with a new or normally functioning one (HILUX_TGN26 RM0000014T703MX.html).


2. Check that the malfunction disappears.


   HINT:

   1. Connect all the speaker connectors to the speakers.

   2. When there is a possibility that either the right or left speaker is defective, inspect by interchanging the right one with the left one.


   Result

   Result	Proceed to
   Malfunction does not disappear	A
   Malfunction disappears	B

1. Disconnect the G5 radio receiver assembly connector.


2. Disconnect the H6*1 and/or I6*2 speaker connector.


   1. *1: for RH

   2. *2: for LH


3. Measure the resistance according to the value(s) in the table below.



   Standard Resistance:

   for RH

   Tester Connection	Condition	Specified Condition
   G5-1 (FR+) - H6-4 (TWR+)	Always	Below 1 Ω
   G5-5 (FR-) - H6-2 (TWR-)
   G5-1 (FR+) - Body ground	Always	10 kΩ or higher
   G5-5 (FR-) - Body ground

   for LH

   Tester Connection	Condition	Specified Condition
   G5-2 (FL+) - I6-4 (TWL+)	Always	Below 1 Ω
   G5-6 (FL-) - I6-2 (TWL-)
   G5-2 (FL+) - Body ground	Always	10 kΩ or higher
   G5-6 (FL-) - Body ground

1. Disconnect the H4*1 and/or I1*2 speaker connector.


   1. *1: for RH

   2. *2: for LH


2. Measure the resistance according to the value(s) in the table below.


   Standard Resistance:

   Tester Connection	Condition	Specified Condition
   1 - 2	Always	4 Ω

   Result

   Result	Proceed to
   OK (for Double Cab [for 6 Speakers])	A
   OK (for Double Cab [for 4 Speakers] and except Double Cab)	B
   NG	C

1. *1: for RH

2. *2: for LH


1. Disconnect the H6*1 and/or I6*2 speaker connector.


2. Disconnect the H4*1 and/or I1*2 speaker connector.


3. Measure the resistance according to the value(s) in the table below.



   Standard Resistance:

   for RH

   Tester Connection	Condition	Specified Condition
   H6-3 (+) - H4-1	Always	Below 1 Ω
   H6-1 (-) - H4-2
   H6-3 (+) - Body ground	Always	10 kΩ or higher
   H6-1 (-) - Body ground

   for LH

   Tester Connection	Condition	Specified Condition
   I6-3 (+) - I1-1	Always	Below 1 Ω
   I6-1 (-) - I1-2
   I6-3 (+) - Body ground	Always	10 kΩ or higher
   I6-1 (-) - Body ground

1. Disconnect the G5 radio receiver assembly connector.


2. Disconnect the H4*1 and/or I1*2 speaker connector.


   1. *1: for RH

   2. *2: for LH


3. Measure the resistance according to the value(s) in the table below.



   Standard Resistance:

   for RH

   Tester Connection	Condition	Specified Condition
   G5-1 (FR+) - H4-1	Always	Below 1 Ω
   G5-5 (FR-) - H4-2
   G5-1 (FR+) - Body ground	Always	10 kΩ or higher
   G5-5 (FR-) - Body ground

   for LH

   Tester Connection	Condition	Specified Condition
   G5-2 (FL+) - I1-1	Always	Below 1 Ω
   G5-6 (FL-) - I1-2
   G5-2 (FL+) - Body ground	Always	10 kΩ or higher
   G5-6 (FL-) - Body ground

1. Disconnect the J7*1 and/or J3*2 speaker connector.


   1. *1: for RH

   2. *2: for LH


2. Measure the resistance according to the value(s) in the table below.


   Standard Resistance:

   Tester Connection	Condition	Specified Condition
   1 - 2	Always	4 Ω

1. Disconnect the G4 radio receiver assembly connector.


2. Disconnect the J7*1 and/or J3*2 speaker connector.


   1. *1: for RH

   2. *2: for LH


3. Measure the resistance according to the value(s) in the table below.



   Standard Resistance:

   for RH

   Tester Connection	Condition	Specified Condition
   G4-1 (RR+) - J7-1	Always	Below 1 Ω
   G4-3 (RR-) - J7-2
   G4-1 (RR+) - Body ground	Always	10 kΩ or higher
   G4-3 (RR-) - Body ground

   for LH

   Tester Connection	Condition	Specified Condition
   G4-2 (RL+) - J3-1	Always	Below 1 Ω
   G4-6 (RL-) - J3-2
   G4-2 (RL+) - Body ground	Always	10 kΩ or higher
   G4-6 (RL-) - Body ground

1. Disconnect the K43*1 and/or K42*2 speaker connector.


   1. *1: for RH

   2. *2: for LH


2. Measure the resistance according to the value(s) in the table below.


   Standard Resistance:

   Tester Connection	Condition	Specified Condition
   1 - 2	Always	4 Ω

1. Disconnect the G4 radio receiver assembly connector.


2. Disconnect the K43*1 and/or K42*2 speaker connector.


   1. *1: for RH

   2. *2: for LH


3. Measure the resistance according to the value(s) in the table below.



   Standard Resistance:

   for RH

   Tester Connection	Condition	Specified Condition
   G4-1 (RR+) - K43-1	Always	Below 1 Ω
   G4-3 (RR-) - K43-2
   G4-1 (RR+) - Body ground	Always	10 kΩ or higher
   G4-3 (RR-) - Body ground

   for LH

   Tester Connection	Condition	Specified Condition
   G4-2 (RL+) - K42-1	Always	Below 1 Ω
   G4-6 (RL-) - K42-2
   G4-2 (RL+) - Body ground	Always	10 kΩ or higher
   G4-6 (RL-) - Body ground
