Oil Pump Disassembly

Engine Hybrid System. Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25
1Gr-Fe Lubrication. Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25

  1. REMOVE OIL PUMP COVER

  2. REMOVE OIL PUMP RELIEF VALVE

Oil Pump -- Disassembly



1. REMOVE OIL PUMP COVER


    Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25.1Gr-Fe Lubrication.Lubrication System.Oil Pump Disassembly

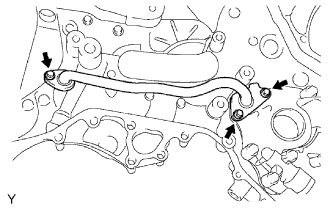

  1. Remove the 3 bolts and oil pipe.

  1. Remove the 2 O-rings.



    Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25.1Gr-Fe Lubrication.Lubrication System.Oil Pump Disassembly

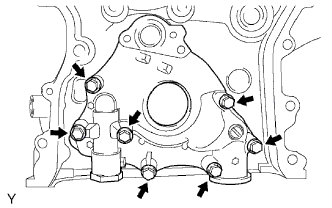

  1. Remove the 7 bolts, oil pump cover, drive rotor and driven rotor.



2. REMOVE OIL PUMP RELIEF VALVE

  1. Remove the relief valve plug, relief valve spring and oil pump relief valve.
