  1. INSPECT MAGNET CLUTCH RELAY

Relay (For Magnet Clutch Control) -- Inspection



1. INSPECT MAGNET CLUTCH RELAY


Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25.Heating Air Conditioning.Air Conditioning System (For Automatic Air Conditioning System).Relay (For Magnet Clutch Control) Inspection

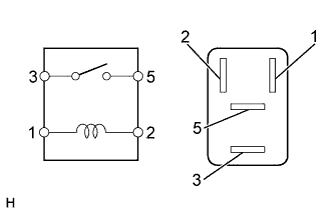

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    3 - 5
    		Battery voltage not applied to terminals 1 and 2
    		10 kΩ or higher
    Battery voltage applied to terminals 1 and 2
    		Below 1 Ω
    If the result is not as specified, replace the magnet clutch relay.
