Quarter Trim Speaker Removal
PRECAUTION
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE UPPER BACK PANEL GARNISH
REMOVE REAR SEAT CUSHION ASSEMBLY LH (w/ Seat Cushion)
REMOVE REAR SEAT CUSHION ASSEMBLY RH (w/ Seat Cushion)
REMOVE LOWER BACK PANEL GARNISH
REMOVE REAR SEATBACK ASSEMBLY
REMOVE FRONT DOOR SCUFF PLATE LH
REMOVE FRONT DOOR WEATHERSTRIP LH
REMOVE QUARTER INSIDE TRIM BOARD LH
REMOVE REAR SPEAKER ASSEMBLY
Quarter Trim Speaker -- Removal |
- HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- NOTICE:
- After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (HILUX_TGN26 RM000004QR1006X.html).
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |
- NOTICE:
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected (HILUX_TGN26 RM000004QR300CX.html).
3. REMOVE UPPER BACK PANEL GARNISH |
Detach the 4 claws and 5 clips and remove the upper back panel garnish.
4. REMOVE REAR SEAT CUSHION ASSEMBLY LH (w/ Seat Cushion) |
Operate the rear seat cushion lock hook release lever and pull up the rear seat cushion assembly LH to detach the hook.
Text in Illustration
| Pull Up
|

| Release
|
Detach the 2 hooks and rear seat cushion assembly LH.
5. REMOVE REAR SEAT CUSHION ASSEMBLY RH (w/ Seat Cushion) |
- HINT:
- Use the same procedures described for the LH side.
6. REMOVE LOWER BACK PANEL GARNISH |
Detach the 6 claws, 2 guides and 5 clips and remove the lower back panel garnish.
7. REMOVE REAR SEATBACK ASSEMBLY |
Remove the 2 bolts.
Lift up the rear seatback assembly in the direction indicated by the arrow to detach the 2 hooks from the vehicle body. Then remove the rear seatback assembly.
- NOTICE:
- Be careful not to damage the vehicle body.
8. REMOVE FRONT DOOR SCUFF PLATE LH |
Put protective tape around the front door scuff plate.
Text in Illustration*1
| Protective Tape
|
Using a moulding remover, detach the 4 clips and 8 claws and remove the front door scuff plate.
9. REMOVE FRONT DOOR WEATHERSTRIP LH |
for Double Cab:
Remove the clip.
Detach the 33 clips and remove the front door weatherstrip.
for Single Cab, for Extra Cab:
Remove the clip.
Detach the 34 clips and remove the front door weatherstrip.
10. REMOVE QUARTER INSIDE TRIM BOARD LH |
Remove the bolt and disconnect the front seat outer belt floor anchor.
Detach the 4 claws, 3 guides and 7 clips and remove the quarter inside trim board.
11. REMOVE REAR SPEAKER ASSEMBLY |
Disconnect the connector.

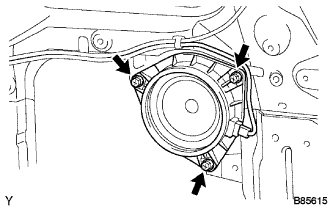

Remove the 3 screws and speaker.
