Drivetrain. Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25
A340F Automatic Transmission Transaxle. Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25
Oil Pump -- Reassembly |
| 1. INSTALL FRONT OIL PUMP OIL SEAL |
 |
Using SST and a hammer, tap in a new oil seal.
- SST
- 09350-30020(09351-32140)
- HINT:
- The oil seal end should be flush with the outer edge of the pump body.
Coat the oil seal lip with MP grease.
| 2. FIX FRONT OIL PUMP BODY |
Place the oil pump body on the torque converter clutch.
| 3. INSTALL FRONT OIL PUMP DRIVEN GEAR |
 |
Coat the driven gear with ATF.
Install the driven gear to the oil pump body.
| 4. INSTALL FRONT OIL PUMP DRIVE GEAR |
 |
Coat the drive gear with ATF.
Install the drive gear to the oil pump body.

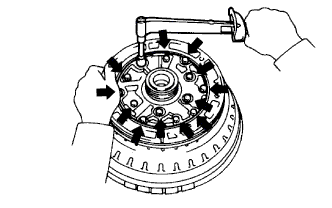

| 5. INSTALL STATOR SHAFT ASSEMBLY |
 |
Align the stator shaft with each bolt hole.
Install the 13 bolts.
- Torque:
- 10 N*m{100 kgf*cm, 7 ft.*lbf}
| 6. INSTALL CLUTCH DRUM OIL SEAL RING |
 |
Coat the 2 oil seal rings with ATF.
Squeeze the ends of the 2 oil seal rings together with the overlap distance 8.0 mm (0.314 in.) or less, and than install them to the stator shaft groove.
- HINT:
- After installing the oil seal rings, check that they rotate smoothly.
| 7. INSPECT OIL PUMP DRIVE GEAR ROTATION |
 |
Make sure the drive gear rotates smoothly.
Remove the oil pump from the torque converter.
| 8. INSTALL FRONT OIL PUMP BODY O-RING |
 |
Install a new O-ring to the oil pump.
