Brake Actuator (W/ Vsc) Reassembly

Brake. Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25
Brake Control Dynamic Control Systems. Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25

  1. INSTALL BRAKE ACTUATOR BOLT CUSHION

  2. INSTALL BRAKE ACTUATOR CASE COLLAR

  3. INSTALL BRAKE ACTUATOR BRACKET ASSEMBLY

Brake Actuator (W/ Vsc) -- Reassembly



1. INSTALL BRAKE ACTUATOR BOLT CUSHION

  1. Install the 3 brake actuator bolt cushions to the brake actuator bracket.



2. INSTALL BRAKE ACTUATOR CASE COLLAR

  1. Install the 3 brake actuator case collars to the 3 brake actuator bolt cushions.



3. INSTALL BRAKE ACTUATOR BRACKET ASSEMBLY


    Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25.Brake Control Dynamic Control Systems.Anti-Lock Brake System.Brake Actuator (W/ Vsc) Reassembly

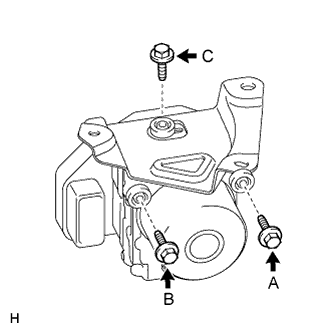

  1. Install the brake actuator bracket to the brake actuator with the 3 bolts.

    Torque:
    5.4 N*m{55 kgf*cm, 48 in.*lbf}
    NOTICE:
    Tighten the 3 bolts uniformly in alphabetical order.
