PRECAUTION
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE FRONT WHEEL
REMOVE FRONT SPEED SENSOR LH

Front Speed Sensor (For 2Wd) -- Removal

HINT:

The procedure listed below is for the LH side.
Other than areas where instructions are provided, use the same procedure for the LH and RH sides.

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (HILUX_TGN26 RM000004QR1006X.html).

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (HILUX_TGN26 RM000004QR300CX.html).

3. REMOVE FRONT WHEEL

4. REMOVE FRONT SPEED SENSOR LH

Disconnect the connector.

Text in Illustration
*A
for LH
*B
for RH

Text in Illustration
*A	for LH	*B	for RH

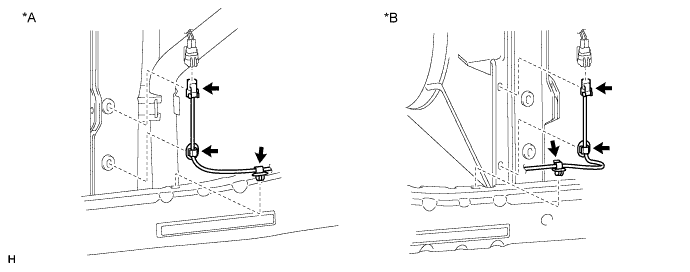

Detach the 2 clamps and the connector.

Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25.Brake Control Dynamic Control Systems.Anti-Lock Brake System.Front Speed Sensor (For 2Wd) Removal

Detach the clamp and remove the bolt and harness clamp.

Remove the bolt and harness clamp.

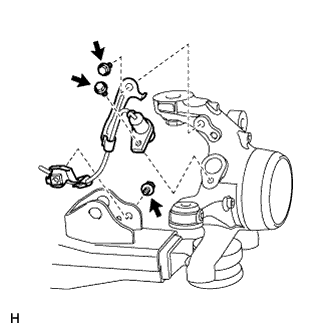

Remove the 3 bolts, 2 harness clamps and speed sensor.
NOTICE:
Keep the sensor tip and sensor installation hole free from foreign matter.
