Rear Crankshaft Oil Seal Installation

Apply MP grease to the lip of a new rear crankshaft oil seal.

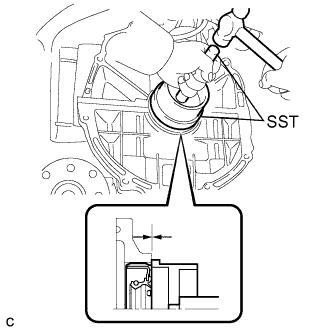

Using SST and a hammer, tap in the rear crankshaft oil seal until its surface is flush with the rear oil seal retainer edge.

SST

09223-15030
09950-70010(09951-07100)

NOTICE:

1. Keep the lip free from foreign matter.

2. Do not tap on the oil seal at an angle.


Clean the 8 bolts and 8 bolt holes.

Apply adhesive to 2 or 3 threads of the 8 bolts.

Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

Using SST, hold the crankshaft.

SST

09213-54015(91651-60855)
09330-00021

Install the front drive plate spacer.

HINT:

Align the pin of the front spacer with the pin hole of the crankshaft.

Install the drive plate and rear drive plate spacer onto the crankshaft.

In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.

Torque:

98 N*m{999 kgf*cm, 72 ft.*lbf}

Clean the 8 bolts and 8 bolt holes.

Apply adhesive to the end 2 or 3 threads of the 8 bolts.

Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

Using SST, hold the crankshaft.

SST

09213-54015(91651-60855)
09330-00021

In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.

Torque:

130 N*m{1326 kgf*cm, 96 ft.*lbf}
