  1. INSPECT ROOM TEMPERATURE SENSOR

Room Temperature Sensor -- Inspection



1. INSPECT ROOM TEMPERATURE SENSOR


    Corolla. Zre142 Aze141.Heating Air Conditioning.Air Conditioning System (For Automatic Air Conditioning System).Room Temperature Sensor Inspection

  1. Disconnect the connector from the room temperature sensor.

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    1 - 2
    		10°C (50°F)
    		3.00 to 3.73 kΩ
    1 - 2
    		15°C (59°F)
    		2.45 to 2.88 kΩ
    1 - 2
    		20°C (68°F)
    		1.95 to 2.30 kΩ
    1 - 2
    		25°C (77°F)
    		1.60 to 1.80 kΩ
    1 - 2
    		30°C (86°F)
    		1.28 to 1.47 kΩ
    1 - 2
    		35°C (95°F)
    		1.00 to 1.22 kΩ
    1 - 2
    		40°C (104°F)
    		0.80 to 1.00 kΩ
    1 - 2
    		45°C (113°F)
    		0.65 to 0.85 kΩ
    1 - 2
    		50°C (122°F)
    		0.50 to 0.70 kΩ
    1 - 2
    		55°C (131°F)
    		0.44 to 0.60 kΩ
    1 - 2
    		60°C (140°F)
    		0.36 to 0.50 kΩ
    NOTICE:
    1. Hold the sensor only by its connector. Touching the sensor may change the resistance value.
    2. When measuring, the sensor temperature must be the same as the ambient temperature.
    HINT:
    As the temperature increases, the resistance decreases (see the graph).
    If the resistance is not as specified, replace the room temperature sensor.

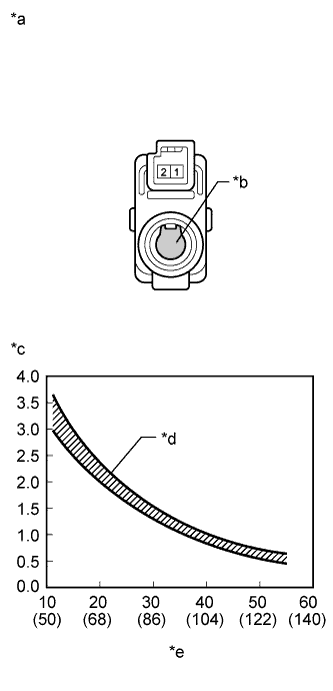

    Text in Illustration
