Differential Oil Seal Replacement

Remove the filler plug and the gasket.

Remove the drain plug and gasket, and then drain the manual transaxle oil.

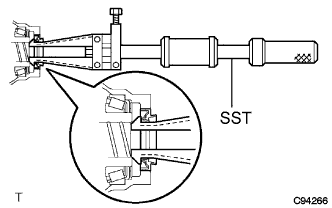

Using SST, remove the transmission case oil seal.

SST

09308-00010

Using SST, remove the transaxle case oil seal.

SST

09308-00010

Coat the lip of a new oil seal with MP grease.

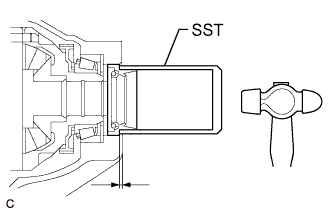

Using SST and a hammer, tap in the oil seal.

SST

09710-26011(09710-05061)

Standard depth:

9.6 to 10.2 mm (0.378 to 0.402 in.)

NOTICE:

Do not damage the oil seal lip.

Coat the lip of a new oil seal with MP grease.

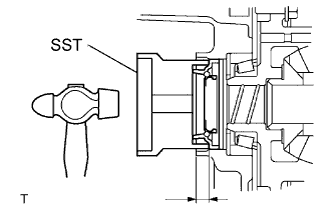

Using SST and a hammer, tap in the oil seal.

SST

09636-20010

Standard depth:

1.4 to 2.0 mm (0.0551 to 0.0787 in.)

NOTICE:

Do not damage the oil seal lip.

Install a new gasket and the drain plug.

Torque:

39 N*m{400 kgf*cm, 29 ft.*lbf}

Add manual transaxle oil.

Install the transmission filler plug and a new gasket.

Torque:

39 N*m{400 kgf*cm, 29 ft.*lbf}

Stop the vehicle in a level place.

Remove the transmission filler plug and the gasket.

Check that the oil surface is within 5 mm (0.197 in.) of the bottom of the transmission filler plug opening.

NOTICE:

1. Excessively large or small amounts of oil may cause problems.

2. After replacing the oil, drive the vehicle and check the oil level again.


Check for oil leakage when the oil level is low.

Install the transmission filler plug and a new gasket.

Torque:

39 N*m{400 kgf*cm, 29 ft.*lbf}
